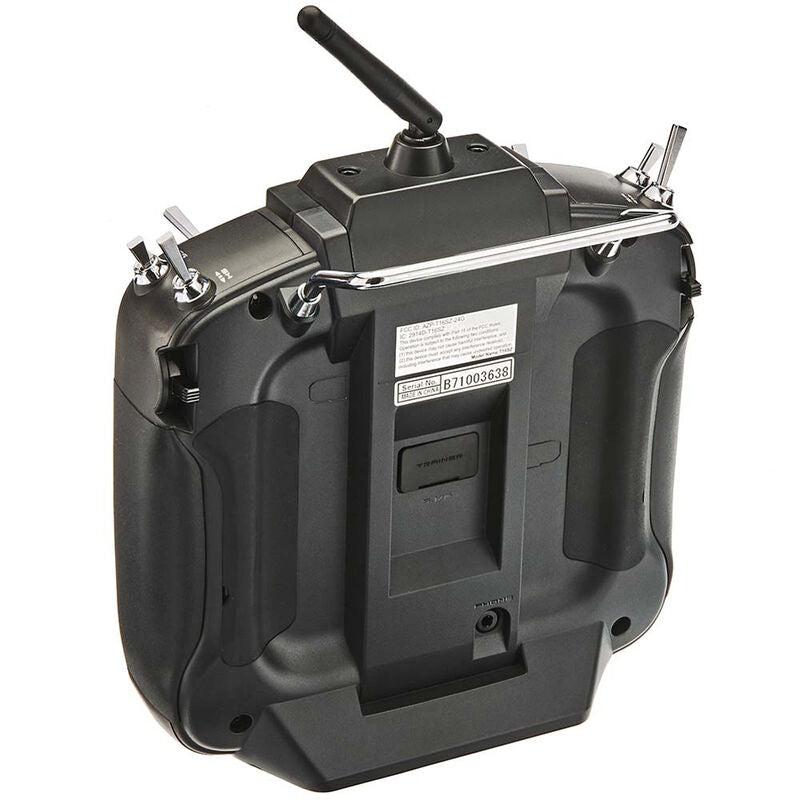

FUTABA T16SZ 16 CHANNEL RADIO MODE 2 16SZ

 Compatible with FASSTest, FASST, T-FHSS, S-FHSS systems
• 16 full channels + 2 switched channels
• 30 Model Memory
• 15 Character user & model names
• SD Card (or SDHC) expandable memory
• Telemetry capability using FASSTest or T-FHSS systems
• Voice messages
• Easy updating using SD Card
• 4.3" 480x272px colour TFT-LCD touch screen
• 2 rotary dials
• 2 side slider controls
• 4 digital trims
• 8 toggle switches
• 6V Ni-MH HT5F1700B included (LiFe LT2F2100B upgrade available)
• 90 degree and 3 step adjustable antenna adjustment
• Built-in speaker or Audio jack for headphones
• Built-in S.Bus interface equivalent to a CIU-2
• Trainer control including S.Bus port
• Feedback via built-in vibrator

General Features
• 240 step adjustable sub trim
• Servo reverse
• Failsafe
• Battery failsafe on all channels using FASSTest, FASST Multi, T-FHSS, S-FHSS (3Ch FASST 7Ch)
• EPA range of 30 - 140% with limit setting
• Adjustable servo speed
• 8 flight conditions
• Dual Rates
• 10 programmable mixes per condition
• Throttle cut
• Idle down
• Servo monitor
• 2 timers (up or down)
• Stick alarm

Aircraft Features
• 13 wing types
• 3 tail types
• 2 rudder types
• Flap setting
• Aileron differential
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Airbrake to elevator mixing
• Rudder to aileron mixing
• Rudder to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Snap roll
• Airbrake mixing
• V Tail mixing
• Ailvator mixing
• Winglet mixing
• Flaperon mix using camber mixing
• Elevon mix using camper mixing
• Motor mixing
• Multi engine mode
• Gyro sense
• Throttle curve using AFR
• Pitch curve using AFR

Helicopter Features
• 8 Swash types (H-1, H-2, H-3, HR3, HN3, HE3, H-4, H4X)
• Pitch / throttle curve
• 17 Point pitch / throttle curves
• 3 Pitch / throttle curve modes
• Acceleration
• Throttle hold
• Swash mixing
• Throttle mixing
• Pitch to needle mixing
• Pitch to rudder mixing
• Fuel mixture
• Gyro sense (3-axis available)
• Governor control
• Condition hold
• Hovering pitch
• High / low pitch
• Hovering throttle
• Swash AFR
• Swash setting
(Mixing Rate,
Linkage Compensation,
Speed Compensation)
• Swash ring
• Throttle limiter

Glider Features
• 13 Wing types
• 3 Tail types
• 2 Rudder types
• Flap Setting
• Aileron Differential
• Aileron to camber flap mixing
• Aileron to brake flap mixing
• Aileron to rudder mixing
• Rudder to aileron mixing
• Airbrake to elevator mixing
• Camber mixing
• Elevator to camber mixing
• Camber flap to elevator mixing
• Butterfly mixing
• Butterfly to elevator mixing
• Trim Mix 1
• Trim Mix 2
• V Tail
• Ailvator
• Winglet
• Flaperon mixing (using camber mixing)
• Elevon mixing (using camber mixing)
• Motor mixing

Telemetry Features (using optional equipment)
• Receiver battery voltage
• Temperature sensor
• RPM sensor (Magnetic, Optic, BLS)
• Altitude sensor (with Vario)
• GPS sensor (with Altitude Sensor)
• Voltage sensor
• Current sensor
• Servo sensor
• ROXXY ESC
• Kontronik ESC
• Castle TL0
• JetCat V10
• PowerBox
• Voice Output in English, German, Japanese, French
• Data logging

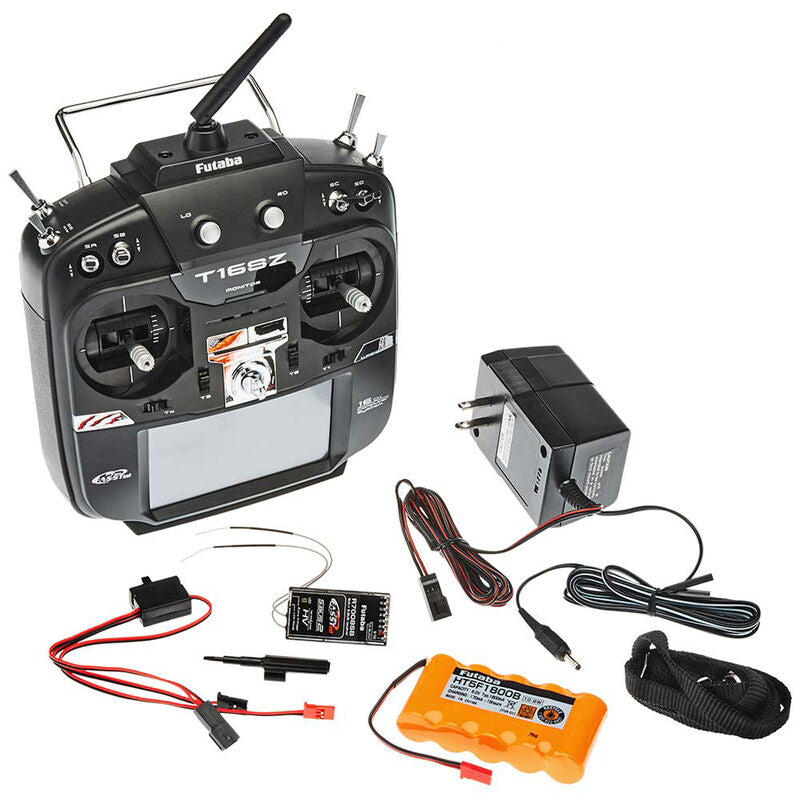

Box Contents
• Futaba T16SZ Transmitter
• Futaba R7008SB Receiver
• Colour printed manual
• HT5F1700B 6V Ni-Mh Battery

Ref: P-CB16SZ-LUK Manufactured by: Futaba
