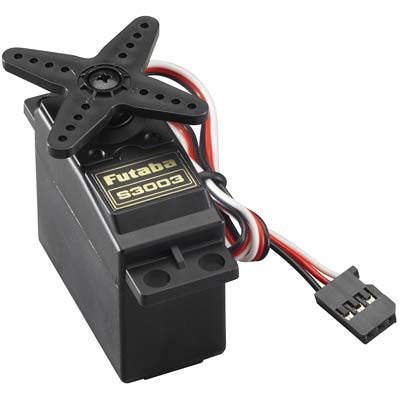

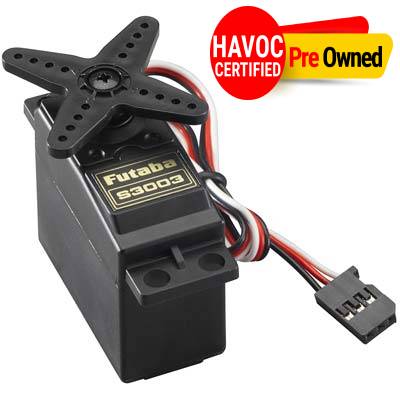

FUTABA SERVO S3003(QUALITY PREOWNED)
Wiring Guide:
- Red: Battery Positive
- Black: Battery Negative
- White: Signal
Package Includes:
Dimensions |
1.6" x 0.8"x 1.4" (41 x 20 x 36mm) |
Product Weight |
1.3oz. (37.2g) |
Output Shaft Style |
25 Tooth (3F) Spline |
Voltage Range |
4.8V - 6.0V |
No-Load Speed (4.8V) |
0.23sec/60° |
No-Load Speed (6.0V) |
0.19sec/60° |
Stall Torque (4.8V) |
44 oz/in. (3.2kg.cm) |
Stall Torque (6.0V) |
56.8 oz/in. (4.1kg.cm) |
Pulse Amplitude |
3-5V |
Operating Temperature |
-20 to +60°C |
Continuous Rotation Modifiable |
Yes |
Direction w/ Increasing PWM Signal |
Counter Clockwise |
Motor Type |
3 Pole Ferrite |
Potentiometer Drive |
Indirect Drive |
Output Shaft Support |
Plastic Bearing |
Gear Type |
Straight Cut Spear |
Gear Material |
Nylon |
Wire Length |
12" |

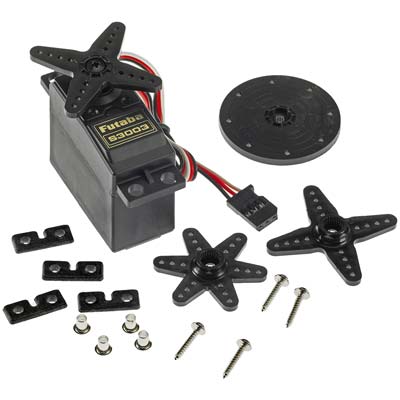

- 1x Futaba S3003 Standard 3.2 kgcm torque Servo Motor
