Features
- Programmable PWM Digital Amplifier
- 32-Bit MCU with 12-Bit ADC Circuitry
- 4096 Resolution
- 1M Cycle Long Life Potentiometer
- Wide Operating Voltage (4.8 ~ 8.4 Volts DC)
- Dual Ball Bearing Supported Output Shaft
- 25-Tooth Output Spline

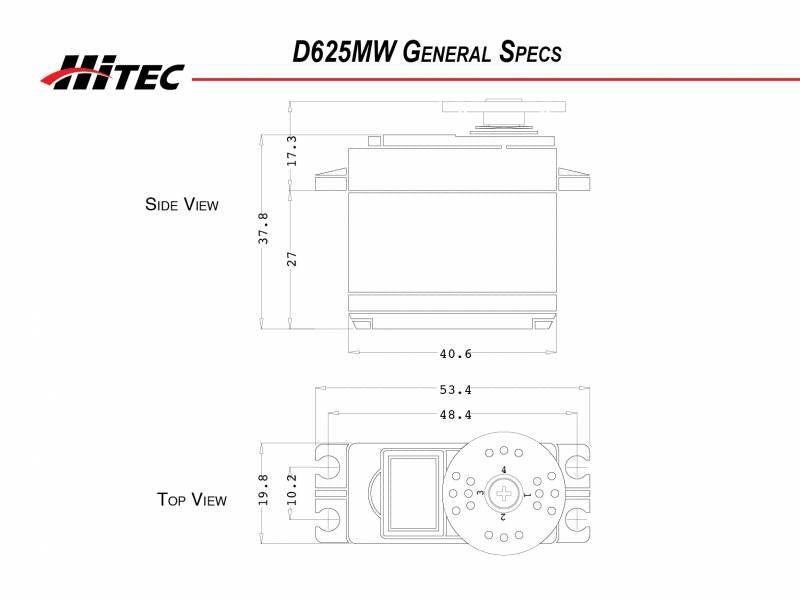

Physical Specifications
- Dimensions (Inches)-1.59 x 0.77 x 1.48
- Dimensions (Metric)-40.6 x 19.8 x 37.8
- Weight (Ounces)-2.11
- Weight (Gram) -57.0
- Circuit Type-32bit Programable Digital
- Motor Type-3 Pole Metal Brush Ferrite
- Gear Material-Metal
- Bearing Type-Dual Ball Bearing
- Output Shaft (type / Ømm)-H25T
- Case Material-Plastic
- Dust / Water Resistance -N / A
- Connector Gauge (AWG) / Strand Count-22 / 60
Radio Control Applications
- Parkflyer-N / A
- Sport Plane-12 - 15 lbs.
- Sailplane-2 meters and up
- 3D Performance-12 - 15 lbs.
- Scale-12 - 15 lbs.
- Electric Helicopter-600mm
- Gas Helicopter-50-59 Class
- On Road-1/10th
- Monster Truck-1/10th
- Buggies -1/10th
- Truggies-1/10th
- Short Course / Truck-2 meters and up
- Crawlers-N / A
- Sail Boat-= >1M & Scale
- Power Boat-1/10th
