MG90S METAL SERVO

Out of Stock
Rs. 449.58
SKU 00715
We currently have 0 in stock.

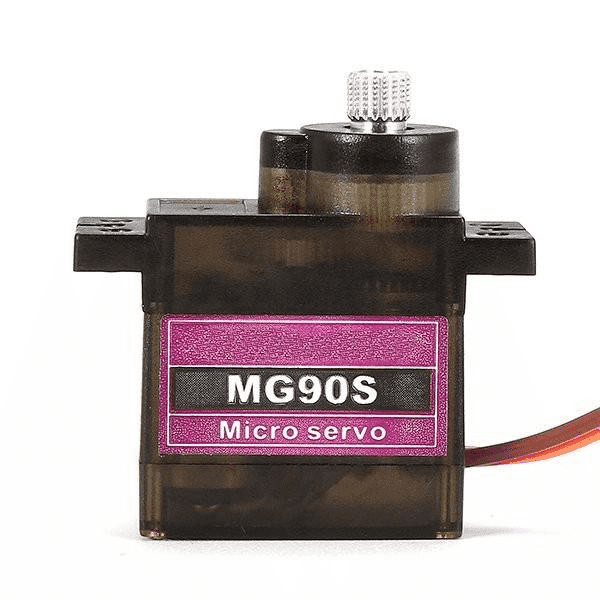

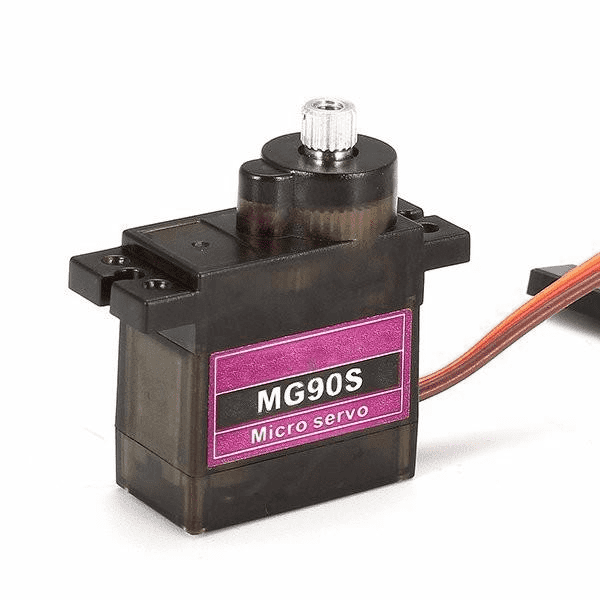

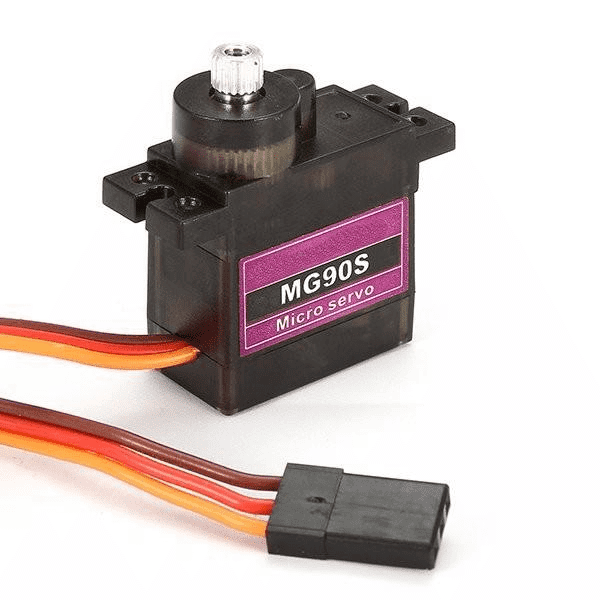

MG90S Metal Gear Mini Servo

MG90S Metal Gear Mini Servo is tiny and lightweight with high output power, this tiny servo is perfect for RC Airplane, Helicopter, Quadcopter or Robot. This servo has metal gear for added streangth and durabiliy. Servo can rotate approximately 180 degree(90 in each direction), and works just like the standard kinds but smaller.


Specification of MG90S Metal Gear Mini Servo:

  • Modulation:     Analog
  • Torque:     4.8V: 30.60 oz-in (2.20 kg-cm)
  • 6.0V:   34.70 oz-in (2.50 kg-cm)
  • Speed:     4.8V: 0.11 sec/60°
  • 6.0V:   0.10 sec/60°
  • Weight:     0.49 oz (14.0 g)
  • Dimensions:     Length:0.91 in (23.1 mm)
  • Width:   0.48 in (12.2 mm)
  • Height:  1.14 in (29.0 mm)
  • Gear Type:     Metal
  • Rotation/Support:     Dual Bearings
  • Rotational Range:     180°
  • Pulse Cycle:     20 ms
  • Pulse Width:     400-2400 µs

Package Include:

  • 1 x MG90S Metal Gear Mini Servo

Resources:
