Phoenix Model Spitfire 50-61cc Gas/EP ARF 95" - 1:4 3/4

by HHCD
Out of Stock
Rs. 88,348.80
SKU HHCD0690
We currently have 0 in stock.

Description

The most spectacular Spitfire yet!
The 95" span Phoenix Model Spitfire EP/Gas ARF recreates every dynamic detail of Britain's beloved warbird! Features include a scale cockpit and pilot figure, heavy-duty air retracts, a two-piece wing, functional panel flaps, operational cockpit side doors and more.
This is the Radio Controlled, Gasoline or Electric Powered, Almost Ready to Fly
50-61cc 1:4 3/4 Spitfire Scale Warbird from Phoenix Model.
For Intermediate Flyers.

FEATURES
Construction: Balsa and ply
Wing: Two-piece, functional flaps
Landing Gear: Air-retract with CNC machined metal suspension struts,
air valve system with quick-connect air hose
Wheels: Main, 4.5" (115mm) diameter, tail, 1.8" (47mm) diameter
Covering: Scale details printed on high quality iron on covering
Cowl: Fiberglass
Wheel Pants: Fiberglass
Spinner: Plastic, 6" (150mm) diameter, scale type
Motor Mount: Plywood
Engine Mount: Plywood with aluminum standoffs

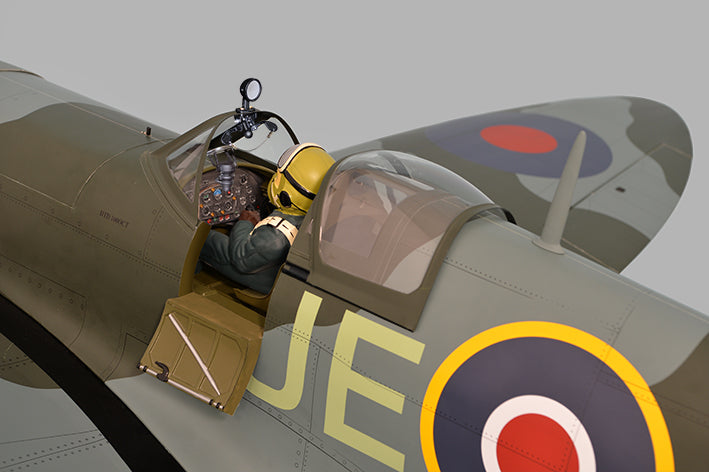

Cockpit: Detailed with instrument panel, painted pilot bust
Canopy: Two-piece, front section slides rearward
Fuel Tank: Approximately 24oz (750cc)

INCLUDES
Prebuilt and covered Wing, Tail and Fuselage sections, Landing Gear,
Fuel Tank, Pilot Bust, Spinner and Instruction Manual

REQUIREMENTS
Radio: At least 8-channel
Servos: 9 standard size, high torque (2-elevator, 2-flap, 1-rudder,
2-aileron, 1-throttle, 1-air valve control)
Receiver Batteries: Two 6.0V NiMH, at least 2400mAh
Building and field equipment

Electric Power:
Brushless Motor: Great Planes Rimfire 50cc recommended
ESC: High-voltage, such as the Castle Creations HV Series
Propeller: 22x8" - 26x10"
LiPo Battery: Two 6S
Battery Charger & Charging Bag: Compatible with selected 6S LiPo
batteries

Gasoline Power:
Engine: .50-.61cc 2-stroke gasoline
Propeller: To match selected engine

SPECIFICATIONS

  • Wingspan: 95" (2410mm)
  • Length: 86" (2177mm)
  • Flying Weight: 24.2 - 26.4lbs (11,000 - 12,000g
  • Wing Area: 1486 sq in (96 sq dm)
  • Wing Loading: 37.7oz/sq/ft (115g/sq dm)
  • Wing Type: NACA airfoils
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
  • Small Wing Joiner Diameter: 0.75" (19mm)
  • Small Wing Joiner Length: 25.2" (540mm)
  • Large Wing Joiner Diameter: 1.2" (32mm)
  • Large Wing Joiner Length: 26.4" (670mm)
  • Center of Gravity (CG): 6.3" (160mm) back from leading edge of wing
  • measured at the fuselage
  • Control Throws: Low Rate High Rate
  • Ailerons, up/down: 0.47" (12mm) 10% expo 0.59" (15mm) 12% expo
  • Elevators, up/down: 0.47" (12mm) 12% expo 0.55" (15mm) 12% expo
  • Rudder, right/left: 1.2" (30mm) 15% expo 1.8" (45mm) 15% expo
  • Landing Gear, down: 0.59" (15mm) 0.98" (25mm) down
