Phoenix Model Super Cub PA-18 20cc Gas/EP ARF 91" - 1:4 1/2

by HHCD
Out of Stock
Rs. 45,073.20
SKU HHCD0693
We currently have 0 in stock.

Description

Over it all
The spirit of the Super Cub, the spirit of absolute freedom, is captured in this giant scale model. It's designed with 3-D engineering software to deliver the most precise, detailed aircraft possible. It includes functional flaps for easier launches and landing plus removable wings for easy transport and storage. Every pilot is proud of his Cub. Get yours today, experience flying freedom tomorrow.
This is the Radio Controlled, Electric, Gasoline, or Glow Powered, 1/4 scale
Almost Ready to Fly Phoenix Model PH117 Super Cub PA-18 Airplane.
For Intermediate Modeler/Fliers.

FEATURES
Construction: Laser cut balsa and light plywood
Wing: 2 piece w/all wood construction, ailerons pre-installed,
aluminum wing joiners
Aileron and Flap Control: Dual servo
Covering: High quality heat shrink covering
Radio Compartment: Plywood reinforced
Cowling: Pre-painted Fiberglass
Canopy: Clear
Landing Gear: Shock absorbing scale painted steel main gear,
present aluminum tail gear
Wheels: Two 4.25" (108mm) rubber main, one 1" (25mm) tail wheel
Fuel Tank w/pre-assembled stopper, approximately 24oz (720cc)

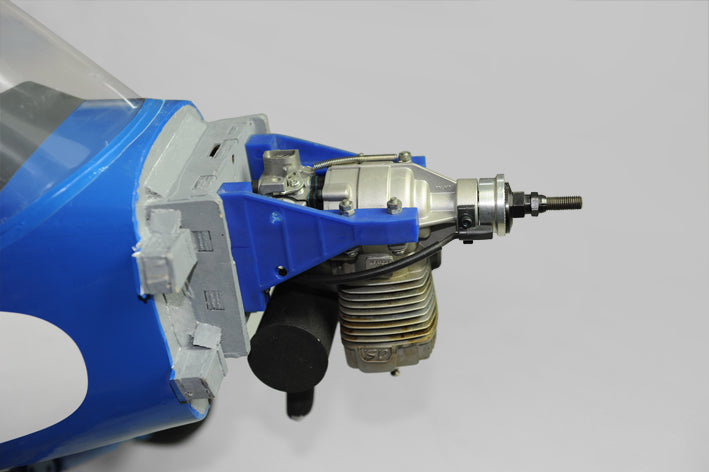

Engine Mount: Two-piece composite plastic
Motor Mount: Plywood with aluminum standoffs

INCLUDES
ARF Super Cub PA-18 Airplane with Landing Gear, Wheels, Fuel Tank,
Decals, Instrument Panel, Pilot, Instruction Manual

REQUIREMENTS
For Glow Operation;
Engine: 1.20 2-stroke, or 1.40 4-stroke

For Gasoline Operation;
Engine: 20cc

For Electric Operation;
Brushless Motor: 1600-2000W
ESC: 120-160A
LiPo Battery: 5S-6S up to 5500 - 6000mAh

Radio: 6-channel
Servos: Eight standard high-torque (2-aileron; 2-flap; 2-elevator;
1-rudder; 1 throttle)
Y-Harness: One for aileron servos
Receiver Battery: 4.8-6V 1200-2000mAh NiMH
Prop Nut: To match engine crankshaft or motor shaft
Misc. Items: 1/4" foam rubber padding, medium fuel tubing,
propeller, building and field equipment.

Specification

  • Wingspan: 90.5" (2300mm)
  • Weight: 10.1 - 11lb (4600 - 5000g)
  • Length: 57.9" (1472mm)
  • Wing Area: 1220 sq in (78.7 sq dm)
  • Wing Loading: 25.7 oz sq/in (78.5 g sq/dm)
  • Wing Type: NACA Airfoil
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
  • Center of Gravity: 3.7" (95mm) Back from the wing's leading edge
  • measured at the fuselage
  • Control Throws- High Rate Low Rate
  • Elevator: 0.31" (9mm) 12% expo 0.43" (11mm) 12% expo
  • Rudder: 0.79"(20mm) 15% expo 1.2" (30mm) 15% expo
  • Ailerons: 0.31" (8mm) 10% expo 0.39" (10mm) 10% expo
  • Control Throw Flap: 15-20mm down
