Phoenix Model Waco F5C 15CC Gas/EP ARF 63" - 1:5 3/4

by HHCD
Out of Stock
Rs. 43,198.80
SKU HHCD0701
We currently have 0 in stock.

Description

Three power options — one incredible plane!

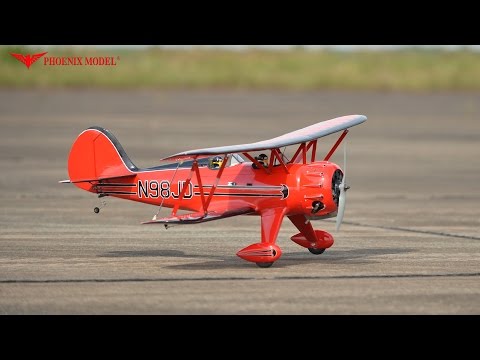

Spanning 63", the Waco F5C ARF is compatible with glow, gasoline or electric power – and it delivers impressive performance with all three! Features top-quality balsa/ply construction, high-quality film covering, a detailed instrument panel, two pilot figures, a removable hatch and a complete hardware package.
This is the Radio Controlled, Electric, Gasoline, or Glow Powered,
1:5 3/4 scale Almost Ready to Fly Phoenix Model Waco F5C Airplane.
For Intermediate Level Flyers.

FEATURES
Construction: Laser cut balsa and light plywood
Wings: One-piece upper, two-piece lower, stabilized with aluminum
wing struts
Aileron Control: Dual servo
Covering: High quality heat shrink covering
Cowl: Painted fiberglass
Radio Compartment: Plywood reinforced
Landing Gear: Scale main gear, spring wire for tail gear
Wheels: Foam, main, three 3" (76mm), tailwheel 1" (25.4mm)
Fuel Tank w/pre-assembled stopper, approximately 12oz (360cc)
Engine Mount: Two-piece composite plastic
Motor Mount: Plywood with aluminum standoffs
Spinner: Plastic red in color 2.7" (70mm) diameter

INCLUDES
ARF Phoenix Model Waco F5C with Landing Gear, Wheels, Fuel Tank,
Instrument Panel, Decals, Pilot, Spinner, Instruction Manual

REQUIREMENTS
For Glow Operation;
Engine: .91 2/stroke

For Gasoline Operation;
Engine: 15cc

For Electric Operation;
Brushless Motor: Rimfire 80
ESC: 60-100A
LiPo Battery: 6S up to 4000 - 5500mAh

Radio: 4-channel minimum
Servos: Five high-torque (2-aileron; 2-elevator; 1-rudder),
1-throttle if using gasoline or glow engine
Servo Extension: Two 12" (305mm) for aileron servos
Y-Harness: One for aileron servos
Receiver Battery: 4.8-6V 800-1200mAh NiMH
Misc. Items: 1/4" foam rubber padding, medium fuel tubing,
propeller, building and field equipment.

SPECIFICATIONS

  • Wingspan: 63" (1600mm)
  • Weight: 10.1 - 11.2lb (4.6 - 5.1g)
  • Length: 49.2" (1250mm)
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
  • Center of Gravity: 4.7" (120mm) Back from the wing's leading edge
  • measured at the fuselage
  • Control Throws- Low Rate High Rate
  • Elevator: 0.39" (10mm) 12% expo 0.47" (12mm) 12% expo
  • Rudder: 1.6" (40mm) 15% expo 2.2" (55mm) 15% expo
  • Ailerons: 0.43" (11mm) 10% expo 0.51" (13mm) 10% expo
