Phoenix P47 Thunderbolt .61~.91 / 15cc

by HHCD
Out of Stock
Rs. 30,700.80
SKU HHCD0703
We currently have 0 in stock.

Description

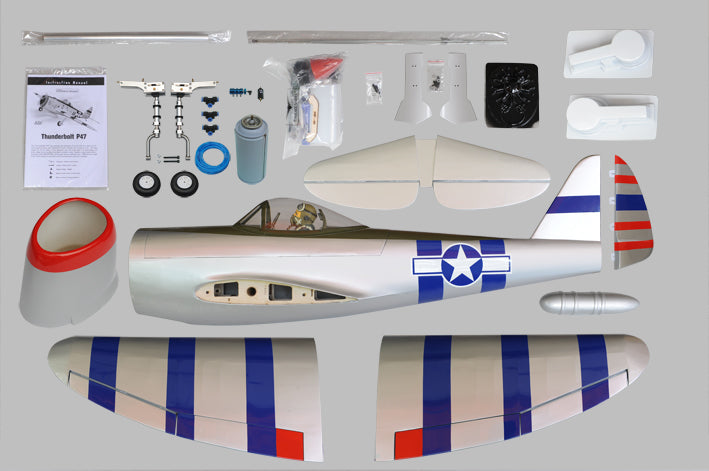

The P-47 Thunderbolt was perhaps the greatest warbird of World War II in terms of all round performance and capability. Top Phoenix Model has recreated this outstanding Airplane to suit size .60-.91 glow plug engines or 15cc Petrol engines. It was designed with the latest laser cut technology and every detail of the airplane has been carefully re-created. The Thunderbolt is built using high quality wood construction and has retracts included. Covered with ORACOVER and supplied with a factory pained cowl, the P-47 is 95% ready to fly. Most hardware is included.
Feature
  • Designed for compatibility with both GP and EP flight
  • Covered in genuine ORACOVER®
  • Top quality balsa/light plywood construction

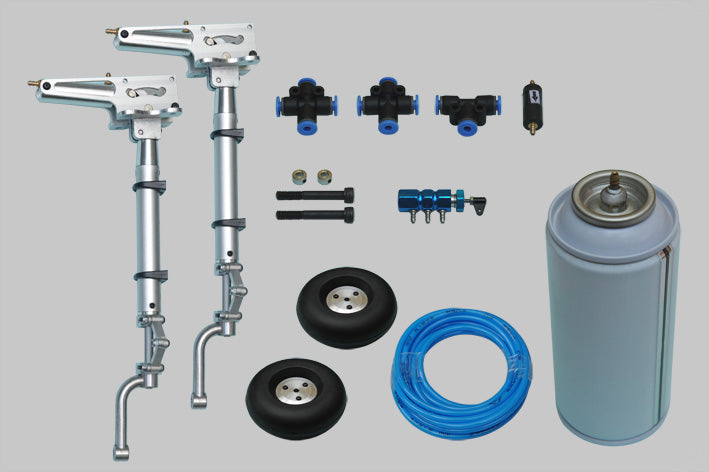

  • Air-retract With CNC Suspension Metal Struts included
  • Full-depth cockpit and instrument panel and pilot included
  • Scale plastic bomb included
  • Bolt-on two-piece wing for easy transport and setup at the field

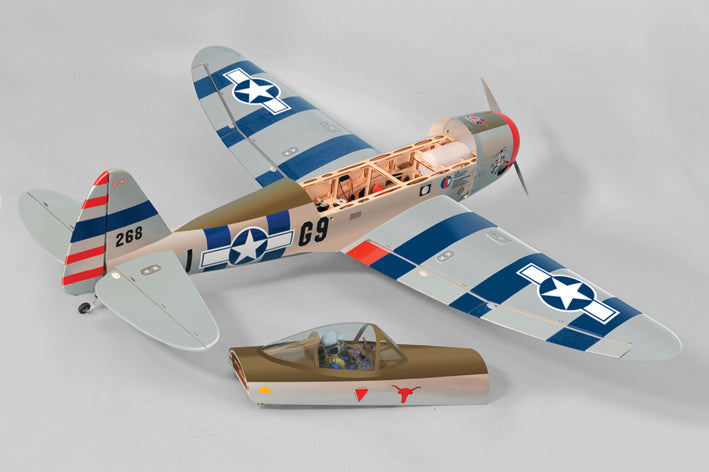

  • Removable canopy for easy change lipo battery and set up radio
  • Strong Light Weight Construction
  • Superb flying characteristics, plus an accurate scale outline
  • High-quality hardware package included

Specification

  •  Wingspan: 1630mm (64.1in)
  • Length: 1375mm (54.1 in)
  • Flying weight: 3700 – 4500g
  • Wing area: 43.8 dm2
  • Wing loading: 85g/dm2
  • Wing type: Naca airfoils
  • Covering type: Genuine ORACOVER®
  • Retract gear type: Air-retract With CNC Suspension Metal Struts (included)
  • Spinner size: P47 Thunderbolt type  (not included)
  • Radio: 6 channel minimum (not included)
  • Servo: 8 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 retract; 1 throttle (not included)
  • Recommended receiver battery: 6.4V 2200mAh Life (not included)
  • Servo mount: 21mm x 42 mm
  • Propeller: suit with your engine
  • Engine: .61-.91 / 2-stroke glow or 15cc petrol (not included)
  • Motor: brushless out runner 1800-2000 W, 500 KV (not included)
  • Gravity CG: 100 mm (7 in) Back from  the leading edge of the wing, at the fuselage
  • Control throw Ailerons: Low: 10mm up/down, 10% expo; High: 12mm up/down, 10% expo
  • Control throw Elevators: Low: 10mm up/down, 12% expo; High: 12mm up/down, 12% expo
  • Control throw Rudder: Low: 20mm right/left, 15% expo; High: 35mm right/left, 15% expo
  • Control throw Flaps: Mid: 15mm down; Landing: 25mm down
  • Experience level: Intermediate
  • Plane type: Scale Military
  • RECOMMENDED MOTOR AND BATTERY SET UP
  • Motor: .80 Size (not included)
  • Propeller: 15x6- 15x8 E APC (not included)
  • Lipo cell: 6 cells / 5000 – 6000mAh (not included)
  • Esc: 80-100 A (not included)
