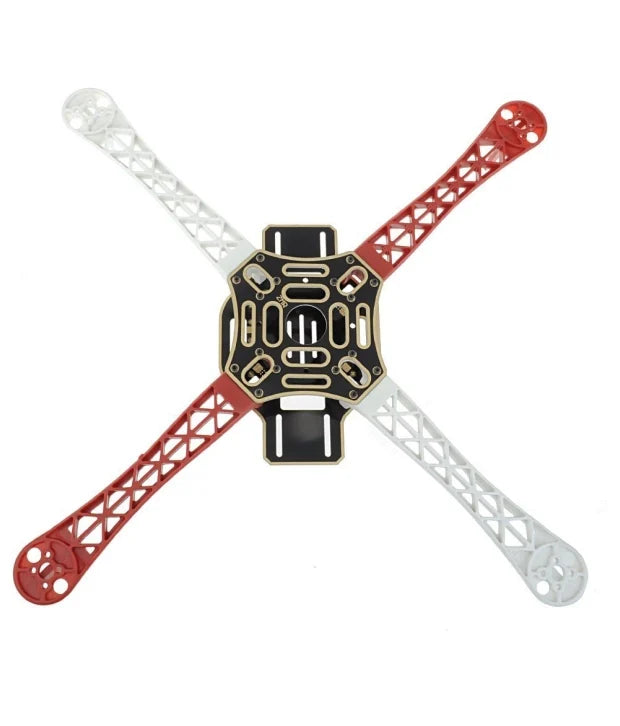

Q450 Quadcopter Frame – PCB Version Frame Kit with Integrated PCB

by HHCRB
Rs. 1,388.80
SKU HHCRB0059
We currently have 13 in stock.

Description:

If you are a beginner and want to learn how to build a drone on your own, you have to first understand what a drone frame is and then determine which motor, propeller, and other will be used with this frame with this kept in mind The Q450 Quadcopter Frame is the best for you, and building it will teach you a lot.

The Q450 Quadcopter Frame is very popular and mostly used Multirotor Frame by hobbyists!!! This is 3rd version of the Q450 Quadcopter Frame that comes with stronger material over v1 and v2, so no more arm breakage at the motor mounts on a hard landing.

This Q450 Quadcopter Frame is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide-Nylon which are the stronger moulded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

The arms of the frame are available in 2 red and 2 white colours which can guide you to fly in the right direction.

They are strong, light, and have a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESC‘s to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The Q450 Quadcopter Frame is a highly flexible frame during mounting of various components like flight controller, battery etc.

The much lighter weight, higher strength Aerodynamic structure of this Q450 frame featuring PA66 arms with glass fibre integrated frame make it the first choice of our customer.

We are offering a full line of multi-rotor accessories,
Multirotor Motors
ESC’s (Electronic Speed Controller)
Orange Li-PO Batteries
Flight Controllers
FPV Cameras
Gimbals
Propellers
Remotes

Note:

The dimensions and weight may have ±2% error.

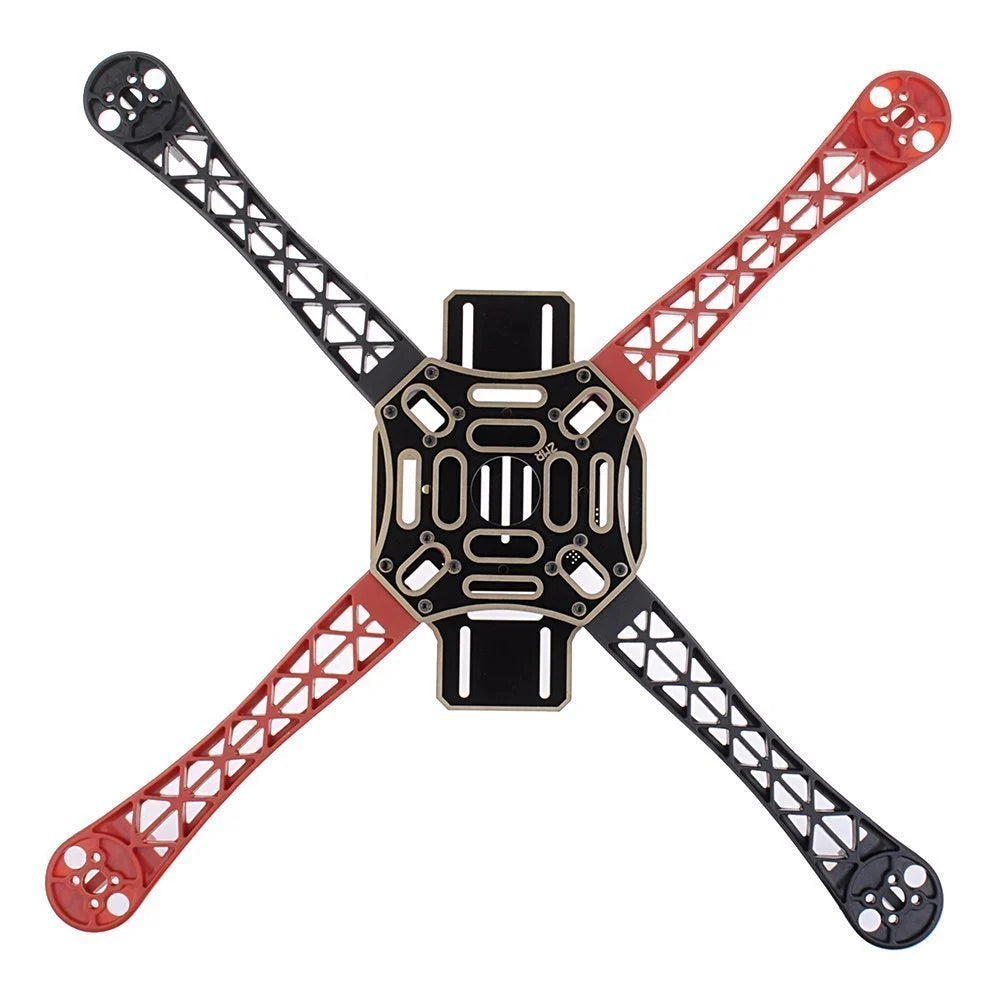

This frame is available in two (Red-White and Red-Black) colour-combination, it will be shipped randomly.

Features :

  1. Made by advanced engineering material, super strong & smooth
  2. Easy to assemble and disassemble.
  3. The frame is tough and durable.
  4. The main glass fibre frame has good strength.
  5. The arm equips support ridges for better and faster forward flight.
  6. Features pre-threaded brass sleeves.
  7. Large mounting tabs for camera mounting.
  8. In-built power distribution board.
  9. Arm mounting holes: 3 mm.

Package Includes :

1 x Q450 quadcopter Frame(Top and Bottom) with Integrated PCB.

4 x Q450 arms (Red+White).

2 x Accessories set.


Recommendation (NOT Included ) :
  • Propeller: “1045″ OR “8045” Orange Propeller (CW & CCW)
  • Battery: 3S Orange LiPo (1800 – 3600mAh)
  • ESC: 15A – 40A.
  • Motor: 800-1100 KV (brushless dc motor)
