QUADCOPTER 250MM FRAME

Out of Stock
Rs. 2,869.76
SKU 01859
We currently have 0 in stock.

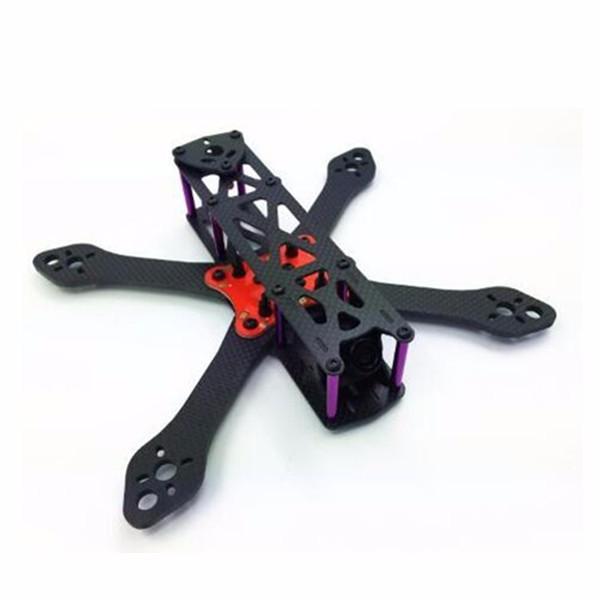

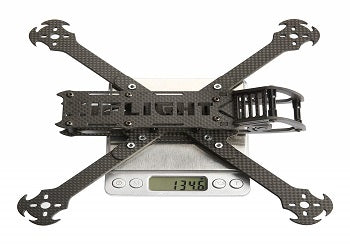

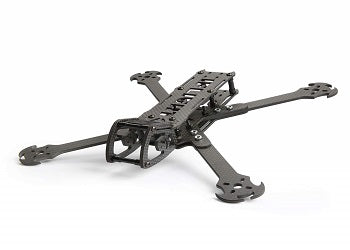

Frame 250mm 5 Inch Carbon Fiber Quadcopter Frame Kit

  • 250mm true x frame fits uo to a 5.5 inch prop (5 inch with hero 6 or session, 5.5 inch with session only)
  • Multi Configuration (Arms on top for mid mount configuration or arms on the bottom for top mount or bottom mount configuration)
  • Multiple battery configuration, Mounting for toilet tank style and traditional style in top mount and mid mount configuration
  • Interlocking center arms for maximum strength with 4mm threaded spacers to create a tight sandwich for the arms
  • Camera pod with tilt ranges from 0-60 with a 30 degree gopro mount (Can protect up to a Runcam Eagle 2 pro camera)
  • Package included:

Width:250mm
Height:95mm
Weight:160g(without electronics)
Motor Mount Bolt Holes:16/19mm
Required:



4 x Motors 1506~2208
4 x 10~15 Amp ESC
4 x 5030~5045 Prop (2CW & 2CCW)
1 x Multi-Rotor Control Board
1 x 800~1300mAh 7.4~11.1V (2s or 3s) Lipoly battery
