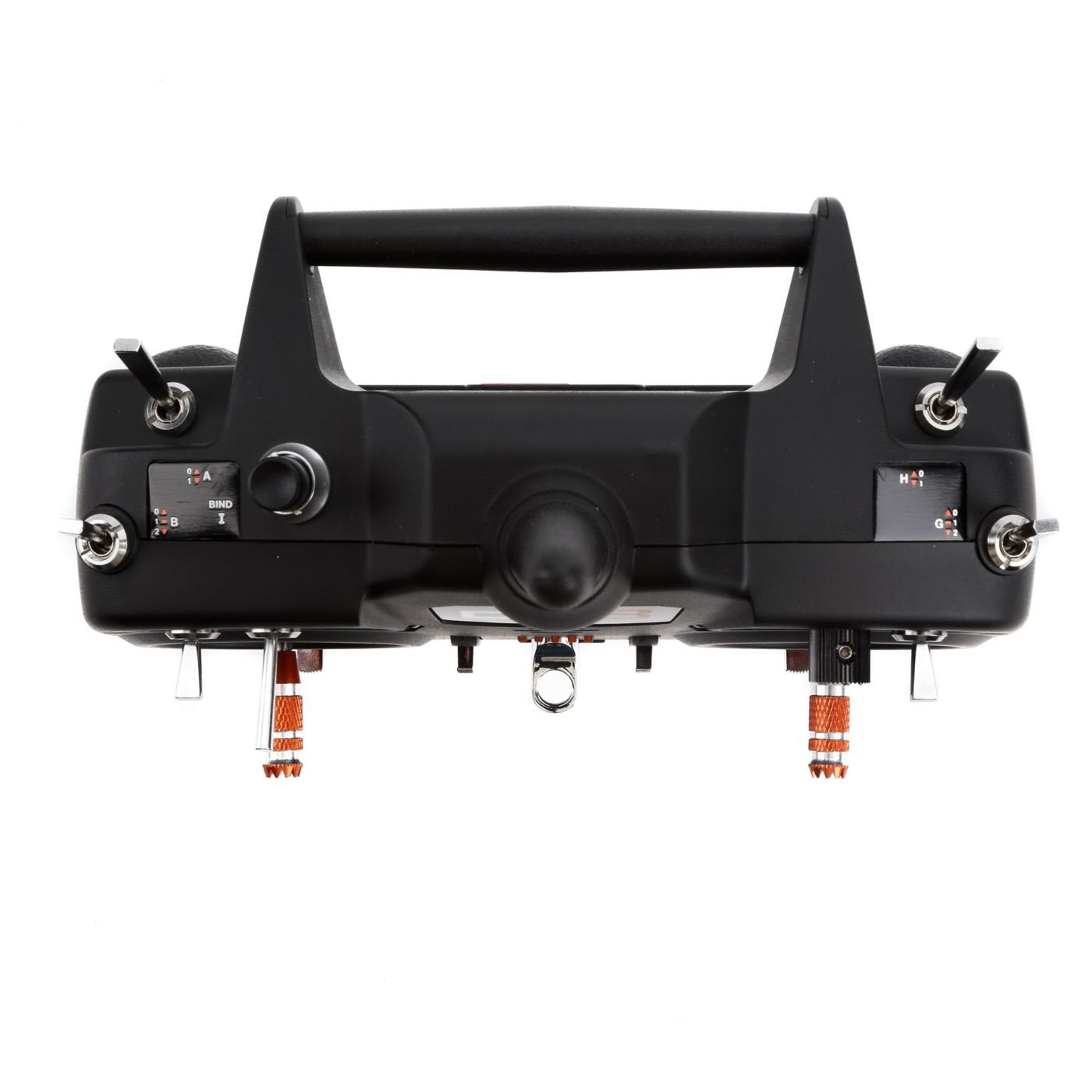

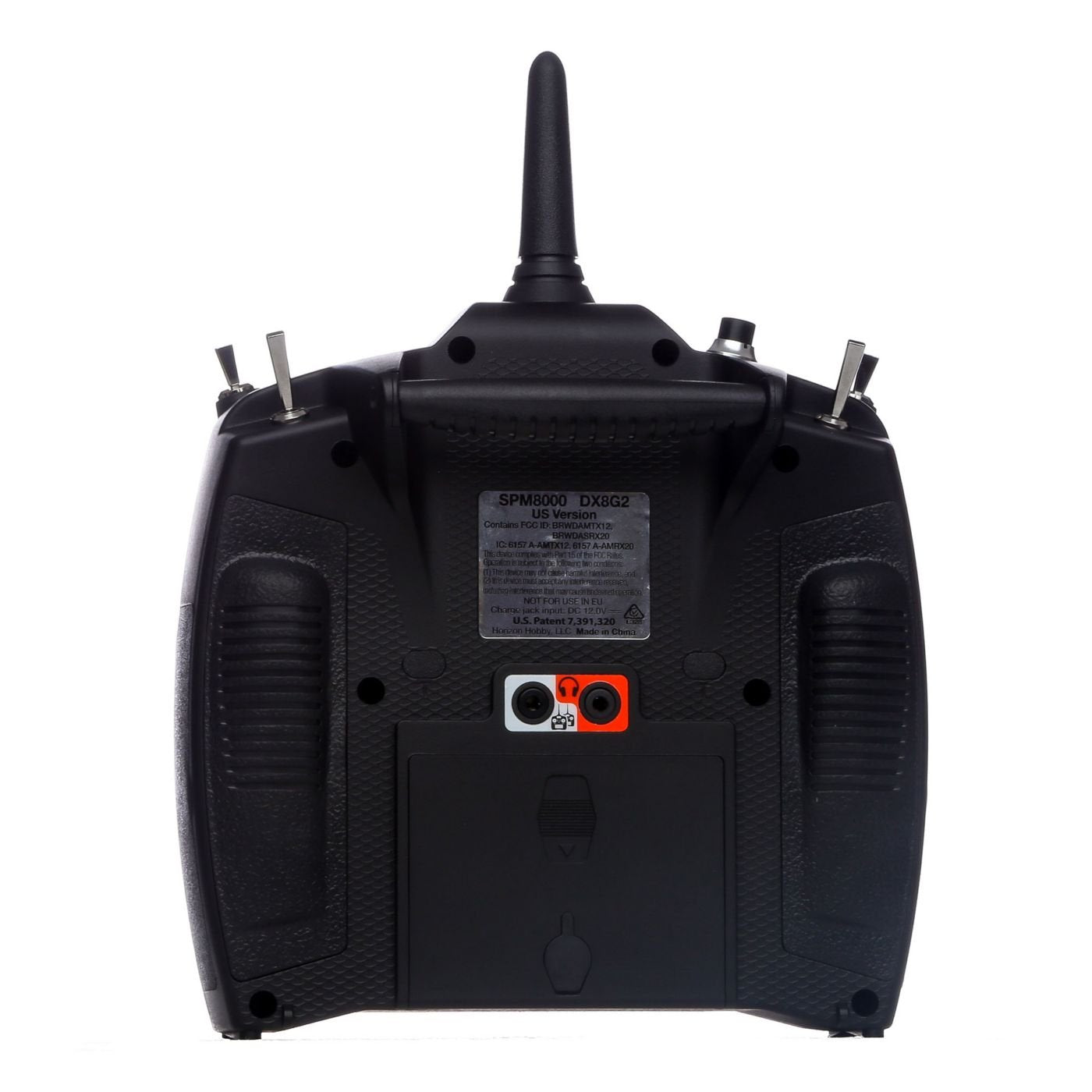

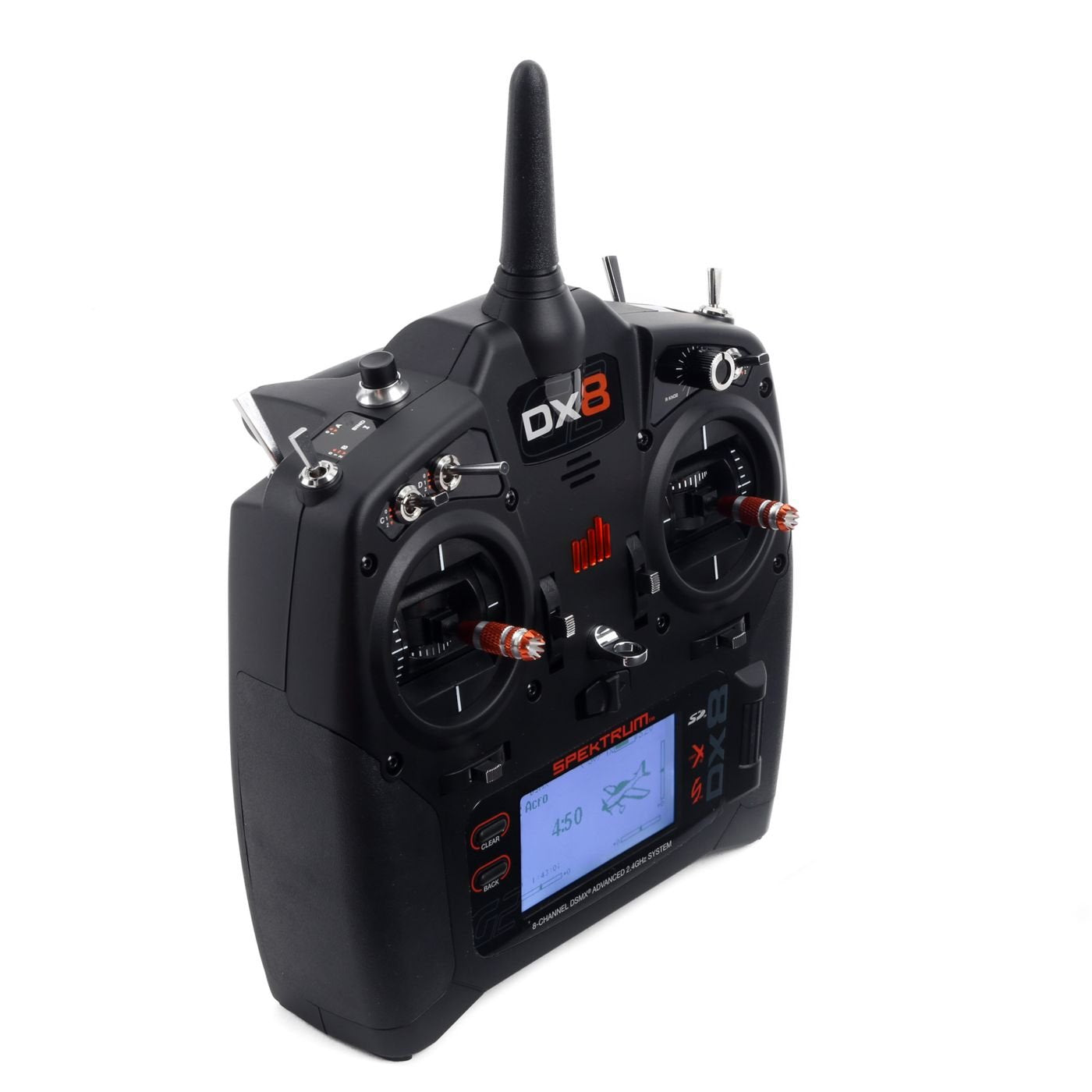

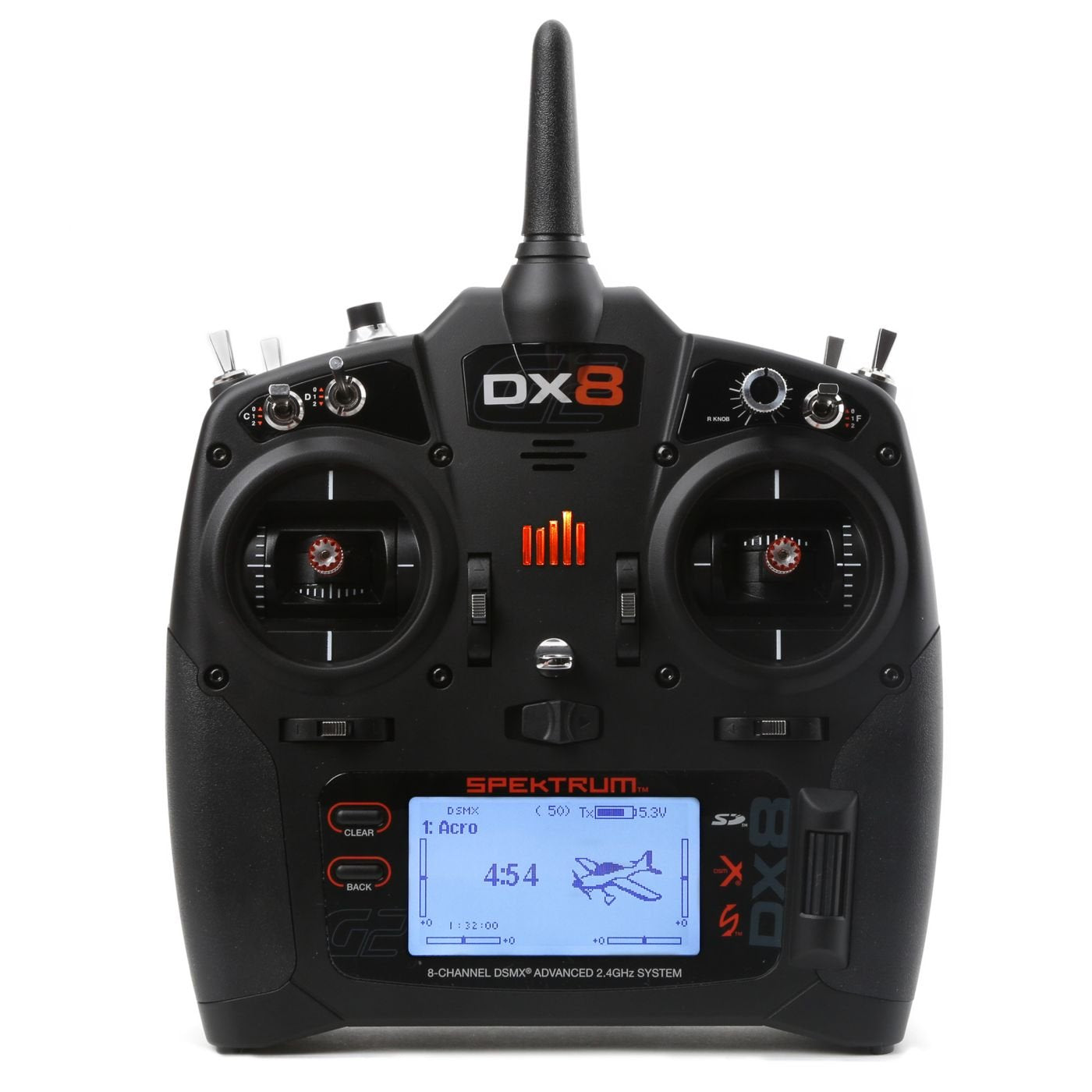

SPEKTRUM RADIO 8CHNL(TX RX)

Spektrum DX8 8-Channel 2.4Ghz Dsmx

Airplane
• 10 Wing Types: Normal, Dual Aileron, Flaperon, 1 Aileron 1 Flap, 1 Aileron 2 Flap,
2 Aileron 1 Flap, 2 Aileron 2 Flap, Elevon A, Elevon B, 4 Aileron
• 6 Tail Types: Normal, V-Tail A, V-Tail B, Dual Elevator, Dual Rudder,
Dual Rudder/Elevator
• Aileron, Flaperon, Elevon and V-Tail Differential
• Flap System with Elevator Compensation
• 5 Flight Modes
• Dual Rates and Expo
• 7-Point Throttle Curve
• Preset Mixes: Elevator-to-Flap, Aileron-to-Rudder, Rudder-to-Aileron/Elevon
• 10 Programmable Mixes – Select Normal or Curve for Each

Helicopter
• Gyro and Governor
• 7-Point Throttle Curve
• 7-Point Pitch Curve
• 7-Point Tail Curve
• 7 Swash Plate Types: Normal, 3-Servo 120˚, 3-Servo 135˚, 3-Servo 140˚, 3-Servo 90˚, 4-Servo 90˚, 2-Servo 180˚
• 5 Flight Modes, Including Hold
• Dual Rates and Expo
• Cyclic-to-Throttle and Swashplate Timing Mixes
• 10 Programmable Mixes – Select Normal or Curve for Each

Sailplane
• 5 Wing Types: Single Aileron, Dual Aileron, 2 Aileron 1 Flap, 2 Aileron 2 Flap,
4 Aileron 2 Flap
• 3 Tail Types: Normal, V-Tail A, V-Tail B
• Motor Throttle Switch Assignment
• Dual Aileron and V-tail Differential
• Camber System
• Camber Preset
• 10 Flight Modes
• Dual Rates and Expo
• Preset Mixes: Flap-to-Aileron Curve, Aileron-to-Flap, Aileron-to-Rudder,
Elevator-to-Flap
• 10 Programmable Mixes – Select Normal or Curve for Each

Multirotor
• Multirotor Channel Inputs – ALT (Altitude), ROL (Roll), PIT (Pitch), YAW
• Multirotor Checklists, Warnings and Voice Alerts
• Simplified Multirotor Flight Mode Setup and Switch Assignment

PRODUCT SPECIFICATIONS

• No. of Channels:8
• Modulation: DSMX
• Band: 2.4GHz
• Servos: Not Included
• Receiver: AR8000
• Model Memory: 250
• Transmitter (Tx) Battery Type: 2000mAh Li-Ion
