TRAXXAS FORD F-150 RAPTOR 1BY10SCALE ELECTRIC CAR

Out of Stock
Rs. 49,560.00
SKU 02422
We currently have 0 in stock.

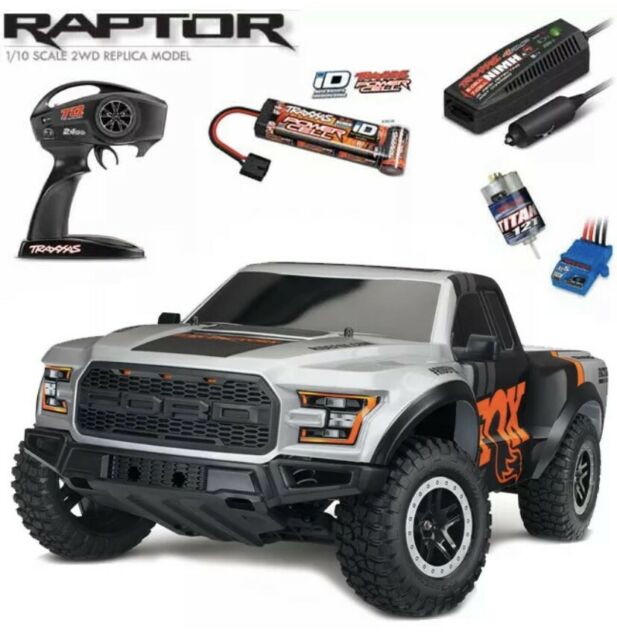

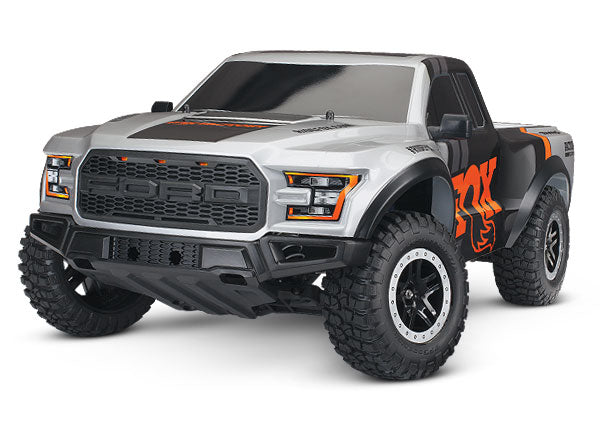

Traxxas Ford F-150 Raptor 2WD 1:10 RTR Short Course Truck TRX58094-1

FORD F-150 RAPTOR (#58094-1) SPECS

  • Length: 568 mm
  • Front Track: 296 mm
  • Rear Track: 296 mm
  • Weight: 2.16 kg
  • Height (overall): 214 mm
  • Wheelbase: 335 mm
  • Front Shock Length: Long
  • Rear Shock Length: XXLong
  • Front Tires: Scale All-Terrain; 2.2"
  • Rear Tires: Scale All-Terrain; 2.2"
  • Front Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
  • Rear Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
  • Speed Control Type: Waterproof XL-5 ESC
  • Motor (electric): Titan® 12T 550 (12-turn)
  • Gear Ratio (internal): 2.72 (final drive: 12.58)
  • Differential Type: Steel Composite Planetary
  • Gear Pitch: 48P
  • Transmission: Metal Gear Magnum 272™
  • Steering: Bellcrank

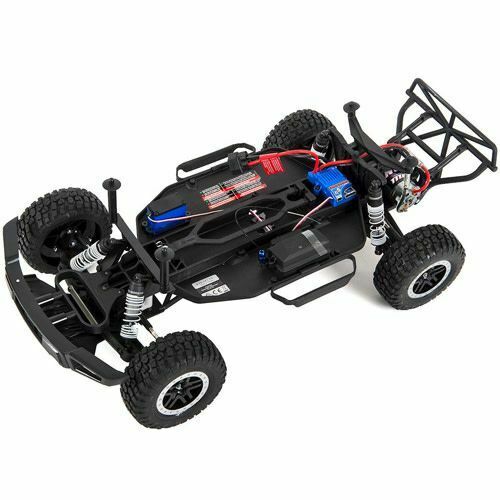

  • Chassis Type: Modified Tub
  • Chassis Material: Composite Nylon
  • Center Ground Clearance: 89 mm
  • Top Speed: 48+kmh*
  • Skill Level: 1
  • Radio System: TQ™ 2.4GHz (2-channel)
  • Included Charger: Traxxas 4-amp DC Peak Detecting Fast Charger
  • Included Batteries: Traxxas Power Cell NiMH Battery with iD™
  • Required Batteries: 4 "AA" (transmitter)

* With 7-cell battery and included optional 23-tooth pinion gear.

XL-5 (WATERPROOF) ESC SPECIFICATIONS

  • Input voltage: 4-7 Cells NiMH, 2-Cell (2S) LiPo
  • Case Size: W31 x D55 x H15.5 mm
  • Weight: 69 g
  • Motor Limit:  15-turns** (540 Size) / 12-turns** (550 Size)
  • On Resistance Forward: 0.007 Ohms
  • On Resistance Reverse: 0.014 Ohms
  • Peak Current - Forward: 100A
  • Peak Current - Reverse: 60A
  • Braking Current: 60A
  • Continuous Current: 14A
  • BEC Voltage: 6.0 VDC
  • BEC Current: 1A
  • Power Wire: 14 Gauge / 127 mm
  • Input Harness Wire: 26 Gauge / 228 mm
  • Transistor Type: MOSFET
  • PWM Frequency: 1600 Hz
  • Thermal Protection: Thermal shutdown
  • Low Voltage Detection: 2-Stage indicators, switchable (on and off)
  • Single-button setup: Yes, Traxxas EZ-Set®
