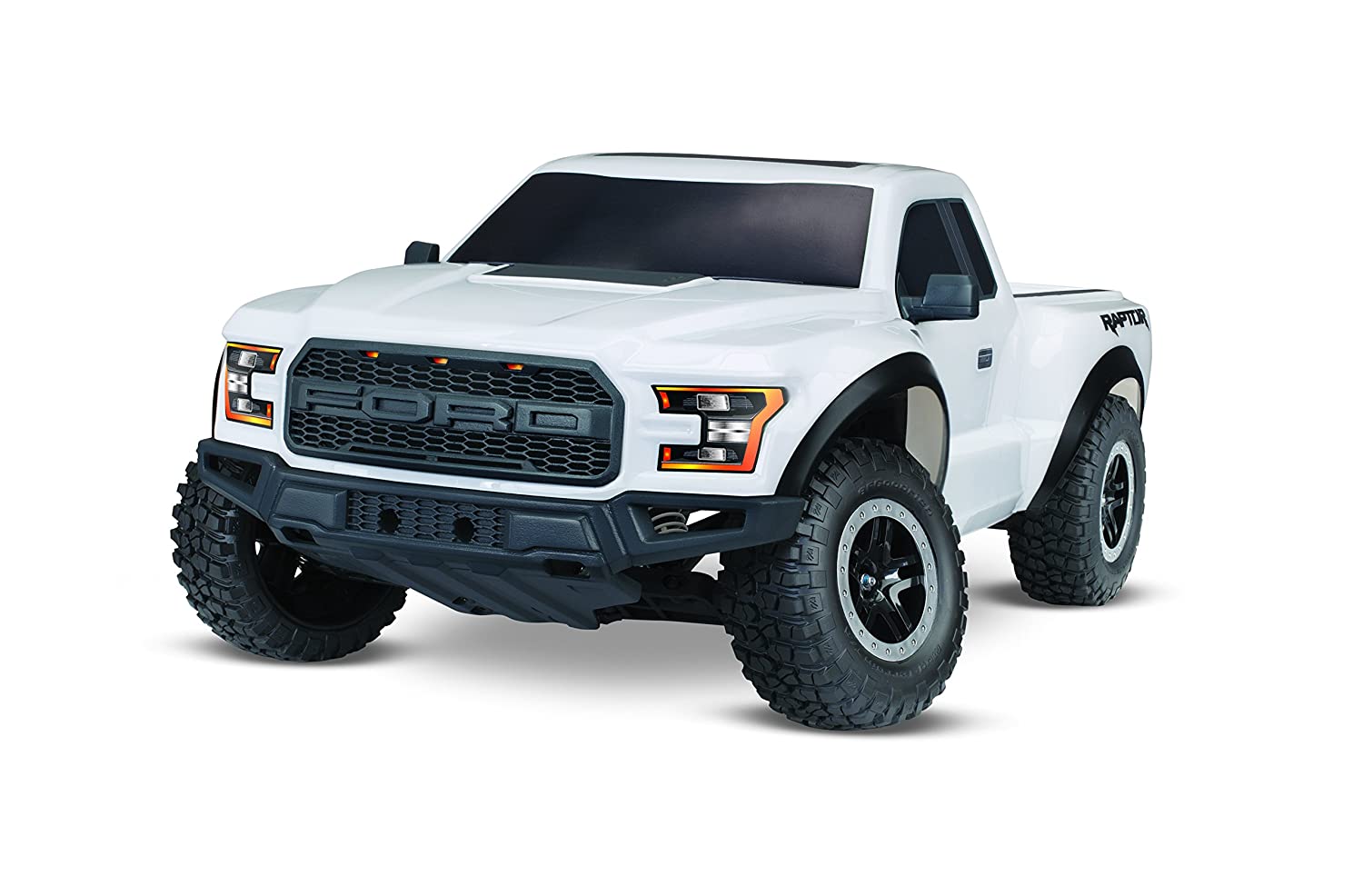

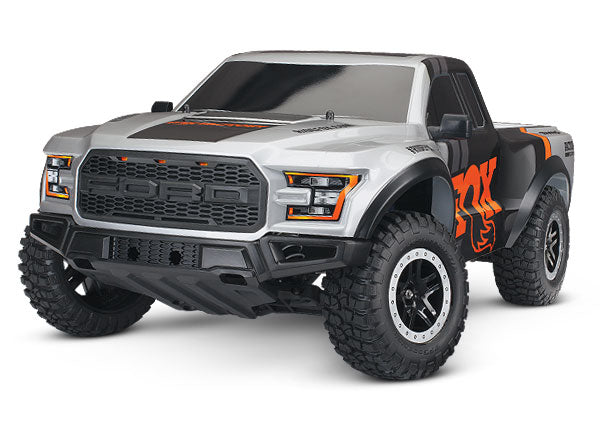

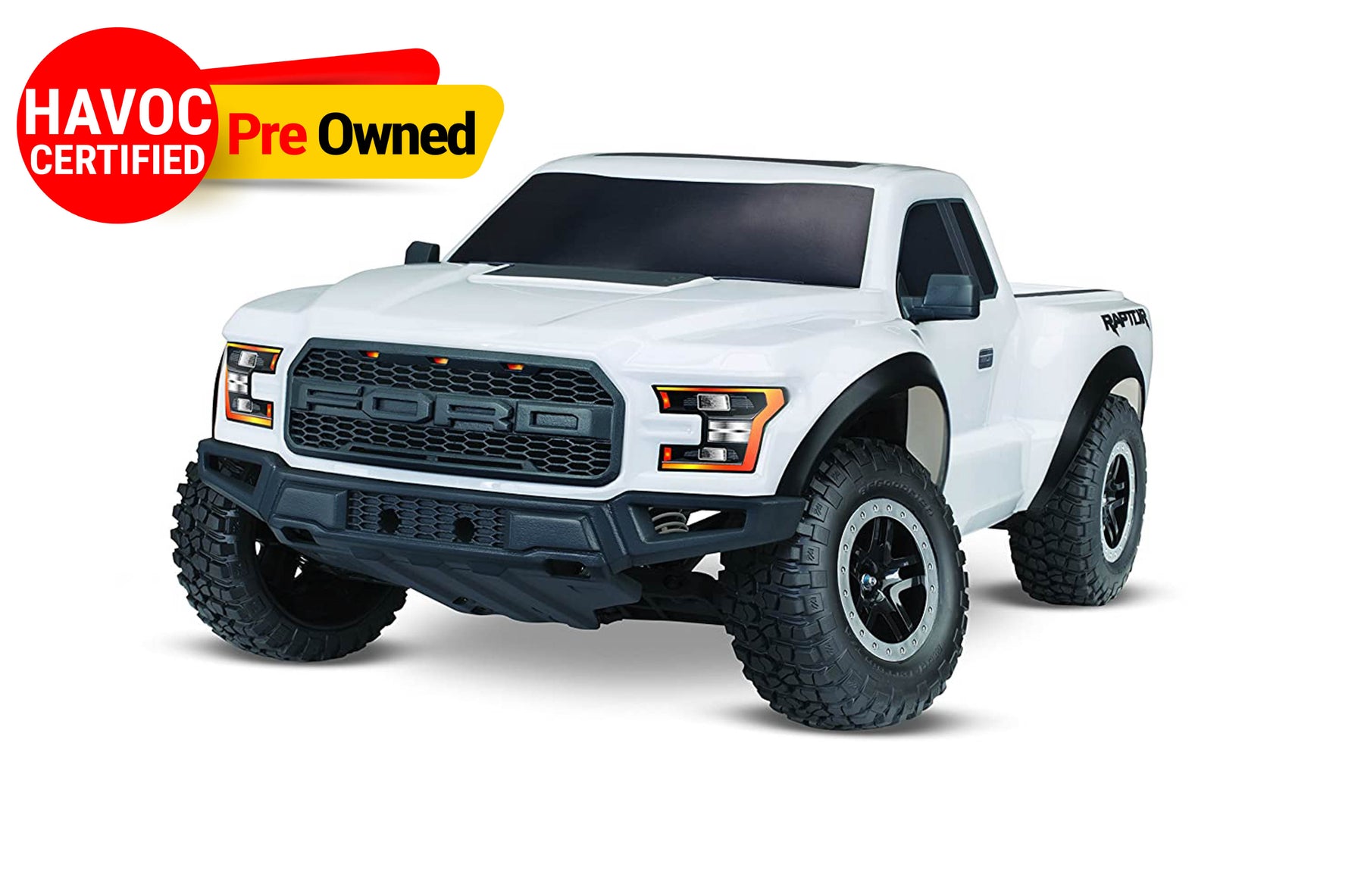

TRAXXAS FORD RAPTOR-150 (QUALITY PRE OWNED)

Traxxas Ford Raptor 150(Quality Pre Owned)

FORD F-150 RAPTOR (#58094-1) SPECS

• Length: 568 mm
• Front Track: 296 mm
• Rear Track: 296 mm
• Weight: 2.16 kg
• Height (overall): 214 mm
• Wheelbase: 335 mm
• Front Shock Length: Long
• Rear Shock Length: XXLong
• Front Tires: Scale All-Terrain; 2.2"
• Rear Tires: Scale All-Terrain; 2.2"
• Front Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
• Rear Wheels: 2.2" Satin-Finish "beadlock" with black split-spoke center
• Speed Control Type: Waterproof XL-5 ESC
• Gear Ratio (internal): 2.72 (final drive: 12.58)
• Differential Type: Steel Composite Planetary
• Transmission: Metal Gear Magnum 272™
• Steering: Bellcrank
• Chassis Type: Modified Tub
• Chassis Material: Composite Nylon
• Center Ground Clearance: 89 mm
• Top Speed: 48+kmh*
• Skill Level: 1
• Radio System: TQ™ 2.4GHz (2-channel)
• Not Included Charger: Traxxas 4-amp DC Peak Detecting Fast Charger
• Not Included Batteries: Traxxas Power Cell NiMH Battery with iD™
• Required Batteries: 4 "AA" (transmitter)

XL-5 (WATERPROOF) ESC SPECIFICATIONS

• Input voltage: 4-7 Cells NiMH, 2-Cell (2S) LiPo
• Case Size: W31 x D55 x H15.5 mm
• Weight: 69 g
• Motor Limit:  15-turns** (540 Size) / 12-turns** (550 Size)
• On Resistance Forward: 0.007 Ohms
• On Resistance Reverse: 0.014 Ohms
• Peak Current - Forward: 100A
• Peak Current - Reverse: 60A
• Braking Current: 60A
• Continuous Current: 14A
• BEC Voltage: 6.0 VDC
• BEC Current: 1A
• Power Wire: 14 Gauge / 127 mm
• Input Harness Wire: 26 Gauge / 228 mm
• Transistor Type: MOSFET
• PWM Frequency: 1600 Hz
• Thermal Protection: Thermal shutdown
• Low Voltage Detection: 2-Stage indicators, switchable (on and off)
• Single-button setup: Yes, Traxxas EZ-Set®
