720 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW

by HHCRB
Rs. 1,104.00
SKU HHCRB0238
We currently have 3 in stock.

Description:

If you are new in multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotors!!! Don’t wait and get this combo of 720 Magnetic Micro Coreless Motor for Micro Quadcopters – 2xCW & 2xCCW.

These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors.

This 720 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.

They are rated at 48000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.

Compatible Propeller (Not Include in This Package) :
  • 65 mm Blade Propeller CW&CCW.
    55 mm Blade Propeller CW&CCW.
Instruction :

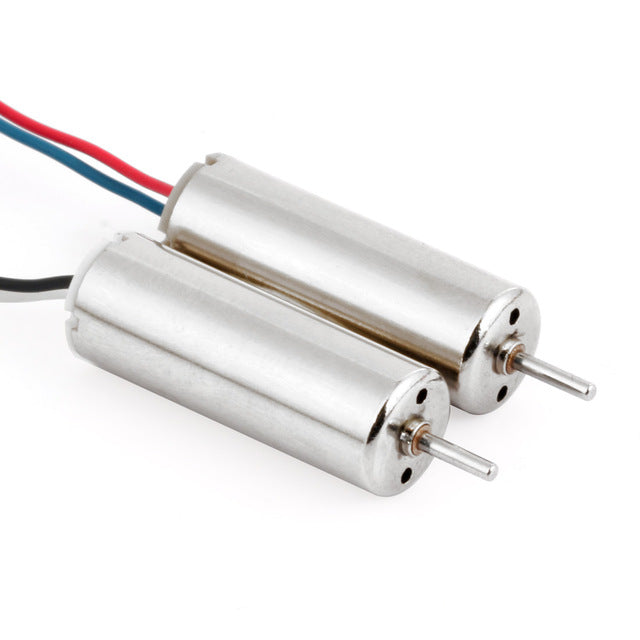

720 Magnetic Micro Coreless Motor with Red and the Blue wire is CW rotation motor & Black and the White wire is CCW rotation motor.


Features :

  1. 720 Coreless motor is High Speed and Low Torque motor.
  2. Less noisy operation.
  3. Offers low resistance.
  4. They are equipped with high-quality magnets.
  5. This coreless motor supports 1S battery.

Package Includes :

2 x 720 Magnetic Micro Coreless Motor (CW)

2 x 720 Magnetic Micro Coreless Motor (CCW)

Specification:

Model

720

Rated Speed (RPM)

48000

Maximum RPM

50000

Rated Voltage(V)

3.7

Operating Current (A)

0.1

Operating Temperature (°C)

-10 to 50

Shaft Diameter (mm)

1

Motor Color

Silver

Motor Diameter(mm)

7

Motor Length (mm)

20

Motor Material

Metal

Prop. Length(mm)

55

Prop. Material

Plastic

Cable Length (cm)

6

Shipment Weight

0.06 kg

Shipment Dimensions

15 × 10 × 6 cm
