ARRMA BLX185 Brushless 6S ESC AR390211

Rs. 14,160.00
SKU 03372
We currently have 1 in stock.

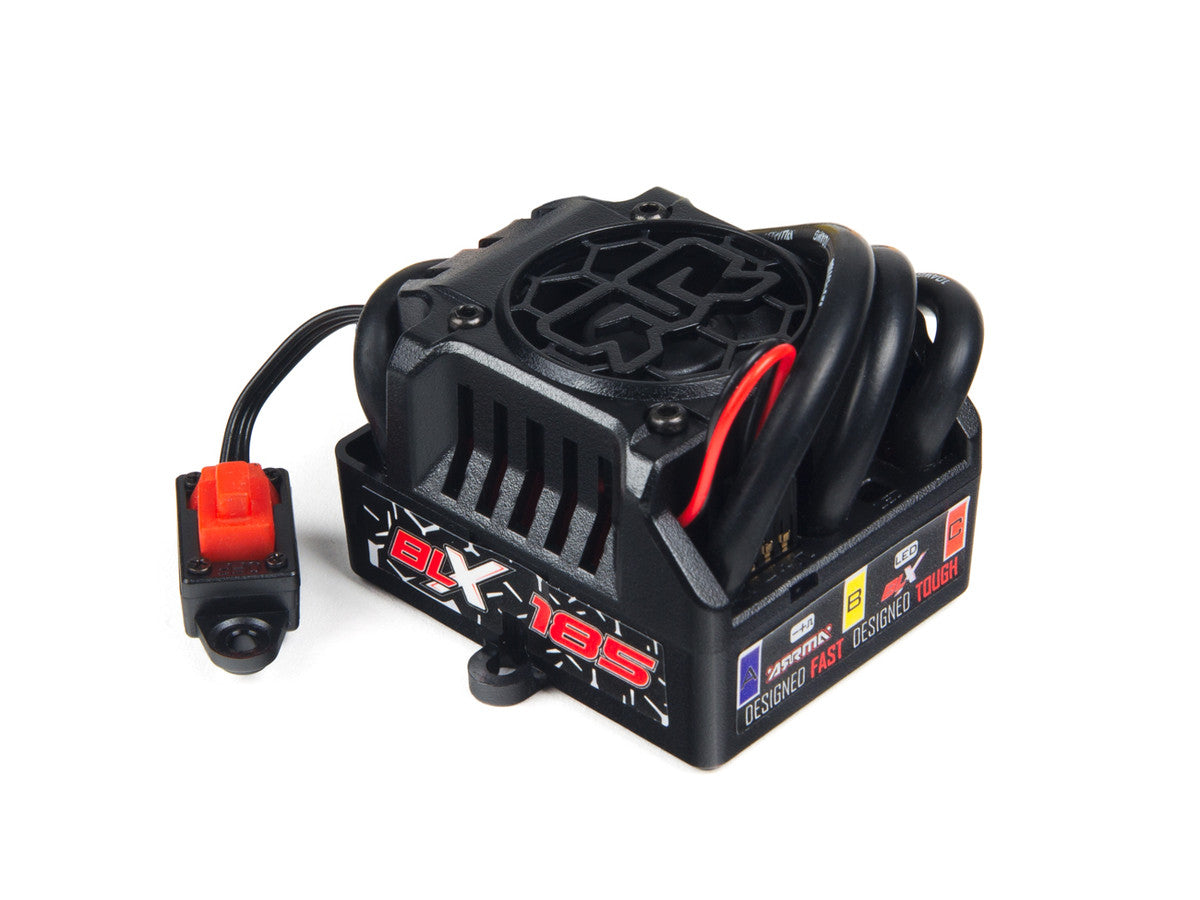

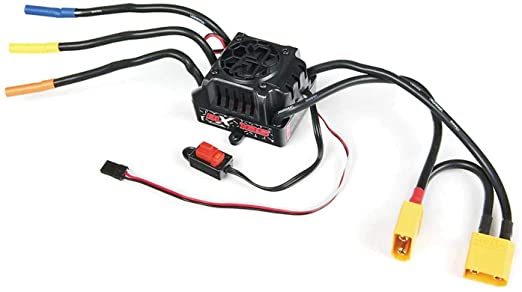

ARRMA BLX185 Brushless 6S ESC AR390211



OVERVIEW:
The BLX185 150A waterproof ESC provides consistent power control and is 6S LiPo ready.

Fitted with super-reliable XT-90 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX185 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 10AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Recommended battery specification: 5000mAh - 35C minimum - Per battery pack

3S, 4S and 6S LiPo Compatibility

BLX185 SPECIFICATIONS
POWER TYPE    BLX Brushless Extreme Performance
ESC TYPE    150AMP Continuous current capacity
BATTERY USAGE    3S LiPo (11.1), 4S LiPo (14.8) or 6S LiPo (22.2V) Stick Pack
LOW VOLTAGE CUT-OFF (LVC)    3.2V per cell
THERMAL PROTECTION TEMPERATURE    105°C / 221°F
OVER-VOLTAGE PROTECTION    Over 6S LiPo (22.2V)
BEC VOLTAGE    6V
BEC CURRENT    3A
ESC LENGTH    57.5mm / 2.26"
ESC HEIGHT    38.9mm / 1.53"
ESC WIDTH    59.5mm / 2.34" (Including hold-down tabs)
ESC WEIGHT    196g / 6.91oz
RECEIVER WIRE LENGTH    200mm / 7.87"
BATTERY WIRE LENGTH    165mm / 6.5"
MOTOR WIRE LENGTH (INCLUDING CONNECTOR)    130mm / 5.12"
SWITCH LENGTH    29.3mm / 1.15"
SWITCH WIDTH    12.8mm / 0.5"
SWITCH HEIGHT    18mm / 0.71"
MOTOR BULLET CONNECTOR SIZE    4mm / 0.16"
WIRE SPECIFICATIONS    10AWG
ESC BATTERY CONNECTOR TYPE    XT90
