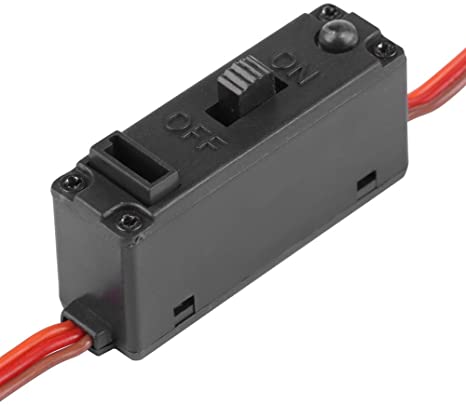

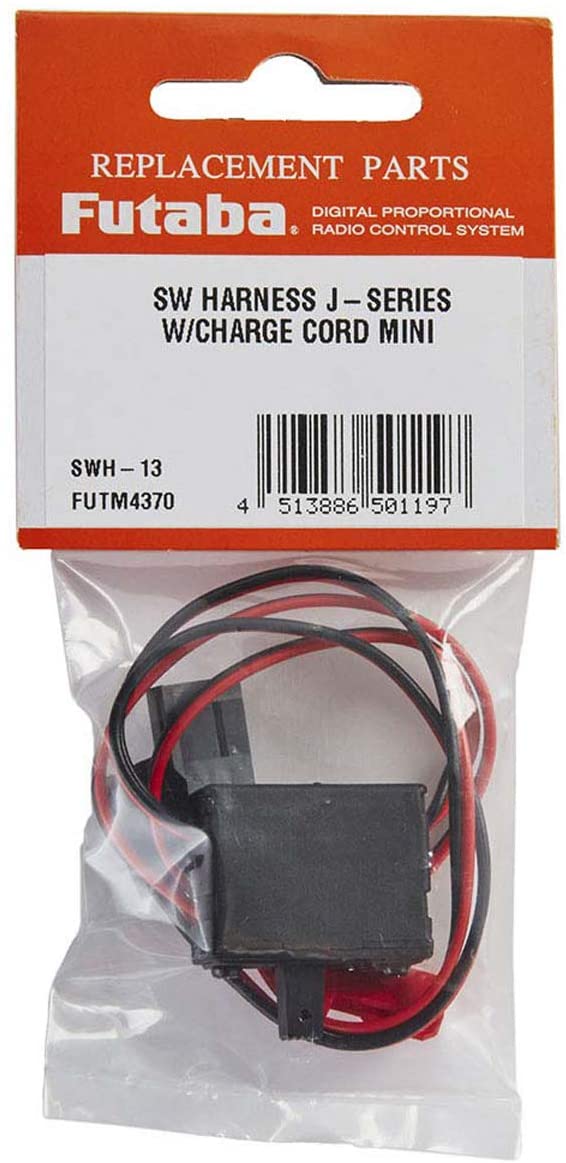

FUTABA ON/OFF SWITCH SSW-J TOP

Heavy Duty High-Power On/Off Electric Switch Harness

Product description

This is the Switch Harness for Futaba Radios with J style connectors. The switch harness connects the receiver battery to the receiver by way of an ON/OFF switch. It also allows you to charge the receiver battery without removing it from the model.

DIMENSIONS (EXCLUDING PROTRUSIONS):
45.6 mm x 14.3 mm x 16.6 mm
1.80 in x 0.56 in x 0.65 in

POWER REQUIREMENT:
3.7 V ~ 7.4 V

VOLTAGE RANGE:
3.5 V ~ 8.4 V

ALLOWABLE CURRENT:
~ 5A

MAXIMUM ALLOWABLE CURRENT:
10A    30s
