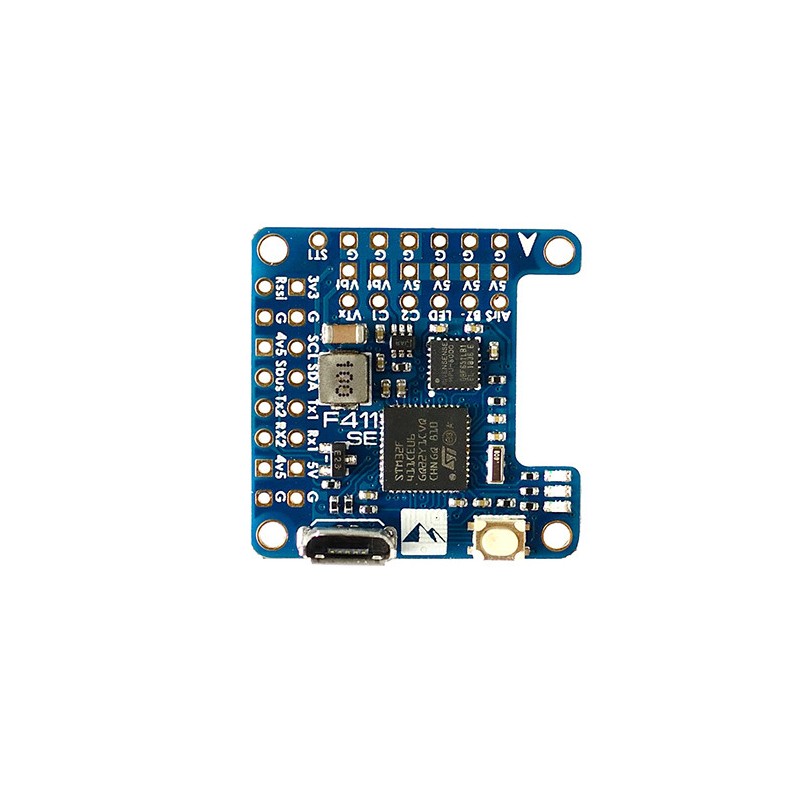

Matek MateksysF411-WSE Compact Flight Controller

by HHCRB
Rs. 9,774.40
SKU HHCRB0066
We currently have 3 in stock.

Description:

Matek Mateksys F411-WSE Compact Flight Controller & BEC 5V Output Built-in 2-6S ESC 78A Current Senor For  iNAV RC Drone Wing

FC Firmware

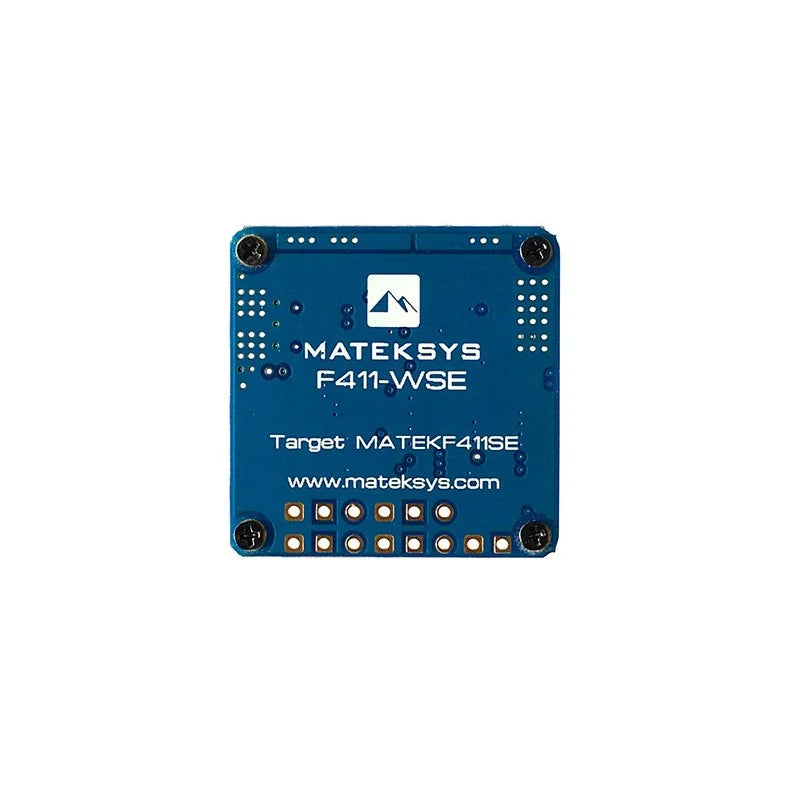

  • INAV Target: MATEKF411SE

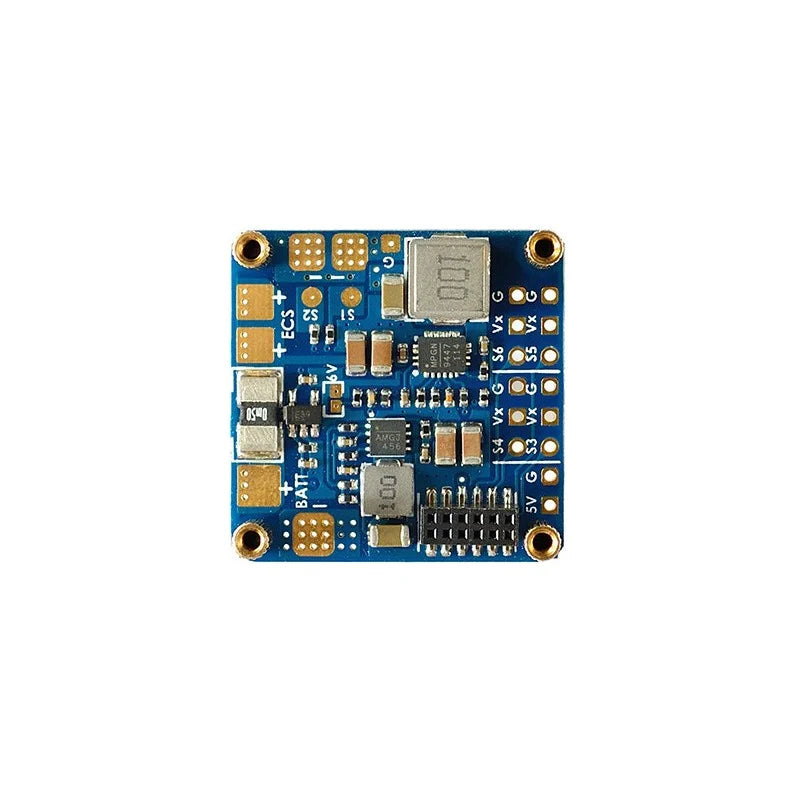

PDB

  • Input voltage range: 6~30V (2~6S LiPo)
  • 2x ESC power pads
  • Battery Voltage Sensor: 1:10 (Scale 1100)
  • Current Senor: 78A, 3.3V ADC, Scale 423

BEC 5V output

  • Designed for Flight controller, Receiver, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed module
  • Continuous current: 2 Amps, Max.3A(5seconds/minute)

BEC Vx output

  • Designed for Servos
  • Voltage adjustable, 5V Default, 6V option
  • Continuous current: 3.5 Amps, Max.5A(5seconds/minute)

BEC 3.3V output

  • Designed for Baro / Compass module/OLED and Spektrum RX
  • Linear Regulator
  • Continuous current: 200mA

Physical

  • Mounting: 24 x 24mm, Φ2mm
  • Dimensions: 28 x 28 x 14 mm
  • Weight: 8.5g

Features:

  1. MCU: 100MHz STM32F411CEU6
  2. IMU: MPU6000 (SPI)
  3. Baro: BMP280 (I2C)

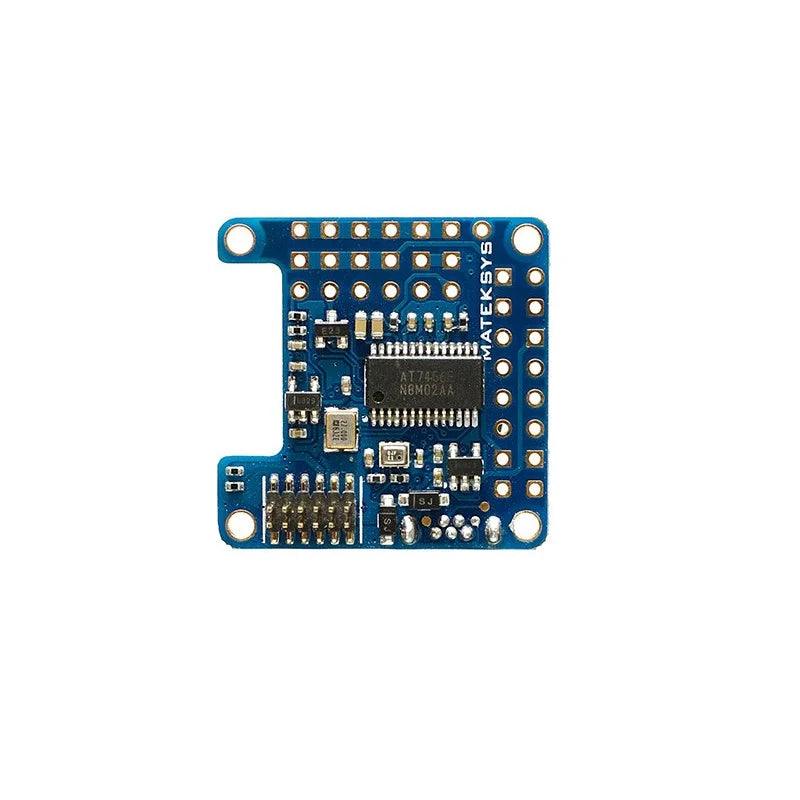

  4. OSD: AT7456E (SPI)
  5. Blackbox: No
  6. 2x Parts
  7. 2x Softserial-Tx
  8. 2x Motors, 4x Servos outputs
  9. 1x I2C
  10. 4x ADC (VBAT, Current, RSSI, AirSpeed)
  11. 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  12. Switchable Dual Camera Inputs
  13. TR/SA VTX control: Yes
  14. WS2812 Led control: Yes
  15. Beeper output: Yes
  16. RSSI: Yes
  17. Voltage divider for Analog Airspeed sensor: Yes

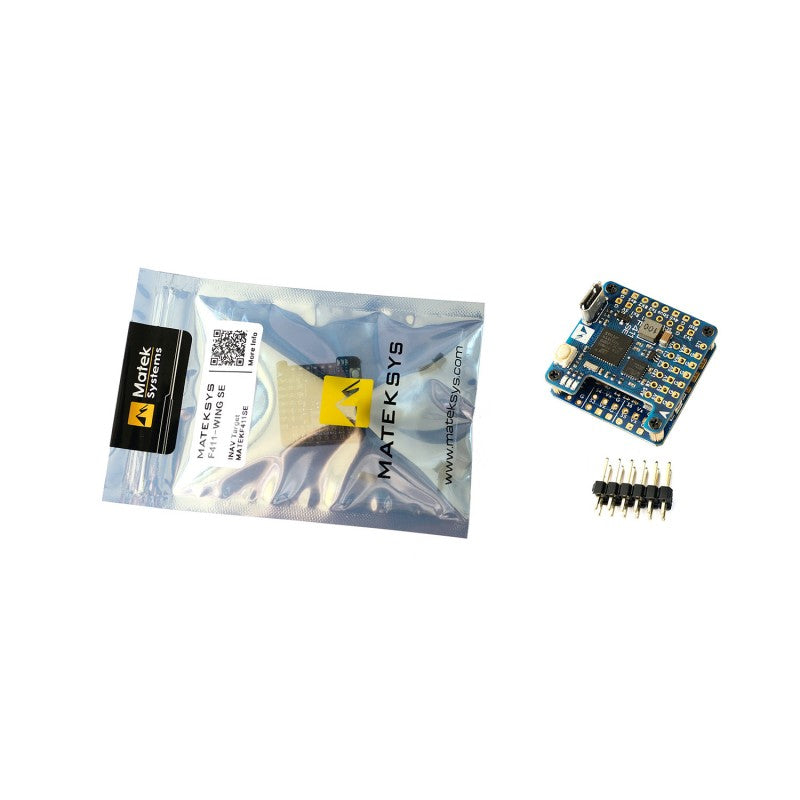

Package Includes:

1 xMatek MateksysF411-WSE Compact Flight Controller

Specification:

MCU

100MHz STM32F411CEU6

IMU

MPU6000 (SPI)

Continuous Current (A)

3.5 Amps

Input Voltage (V)

6~30V

Compatible LiPO Batteries

2~6S LiPo

Shipment Weight

0.013 kg

Shipment Dimensions

12 × 9 × 1 cm
