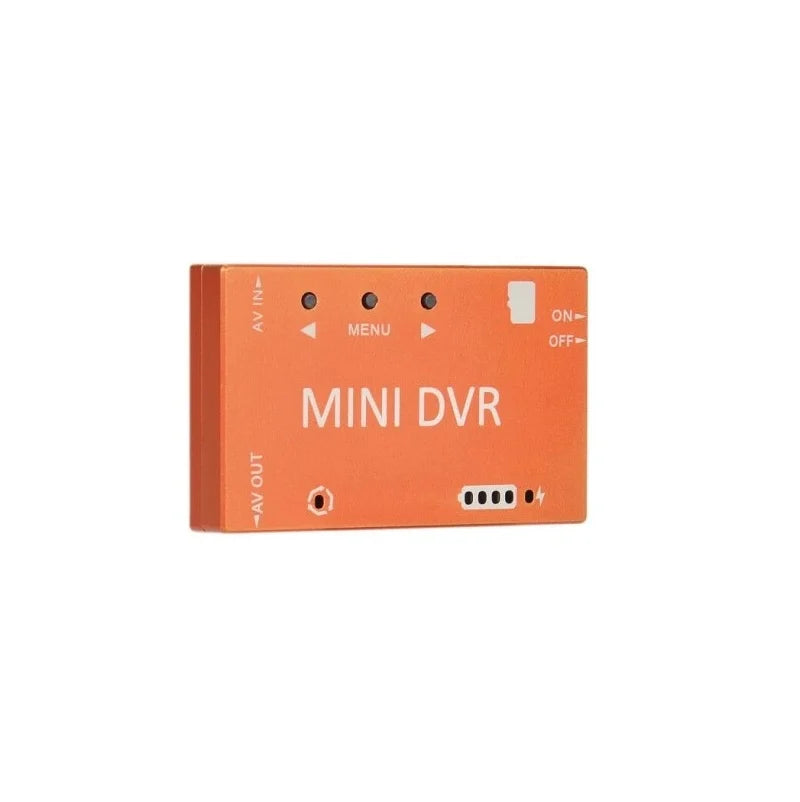

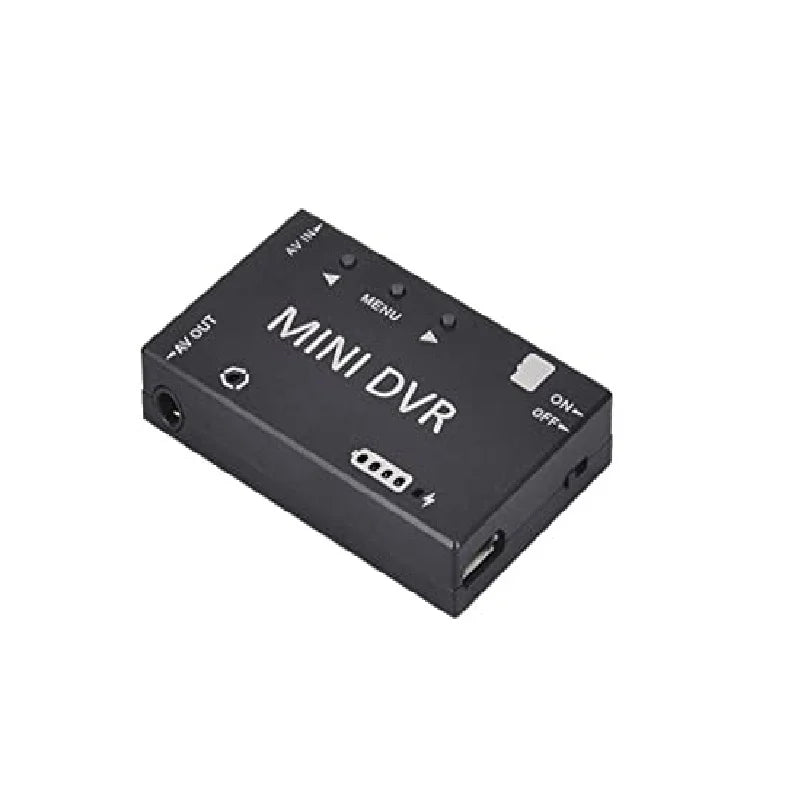

Mini DVR Audio Video Recorder for FPV RC Drones

by HHCRB
Rs. 3,518.40
SKU HHCRB0124
We currently have 32 in stock.

Description:

This Mini DVR Audio Video Recorder for FPV RC Drones is super lightweight and newest FPV DVR we have.  Its mini size design (55 x 33 mm), Ultra-lightweight which is at only 23 grams make it suitable for mini indoor as well as outdoor drone quadcopter.

The mini DVR comes with Built-in 3.7V/400 mAh lithium-ion polymer battery; which can record around 1 hour of AV footage. DVR has a micro USB port to read the data on card as well as to charge the battery simultaneously. It has Lossless Video Output for VTX. The DVR has been loaded, so the output of video will be amplified synchronously giving you a more clear picture and video. This DVR comes with a Micro-SD card support option to save the recorded data. Very easy to install and Use.

Black technology: This mini fpv DVR can record high-frequency vibration motor audio without access to MIC. Easy to operate and use. Available Application: Suitable for all Runcam camera, help you capture a vivid and high-quality picture and video.


Features:

  1. Small size and lightweight
  2. Low power consumption, operating current 200 mA

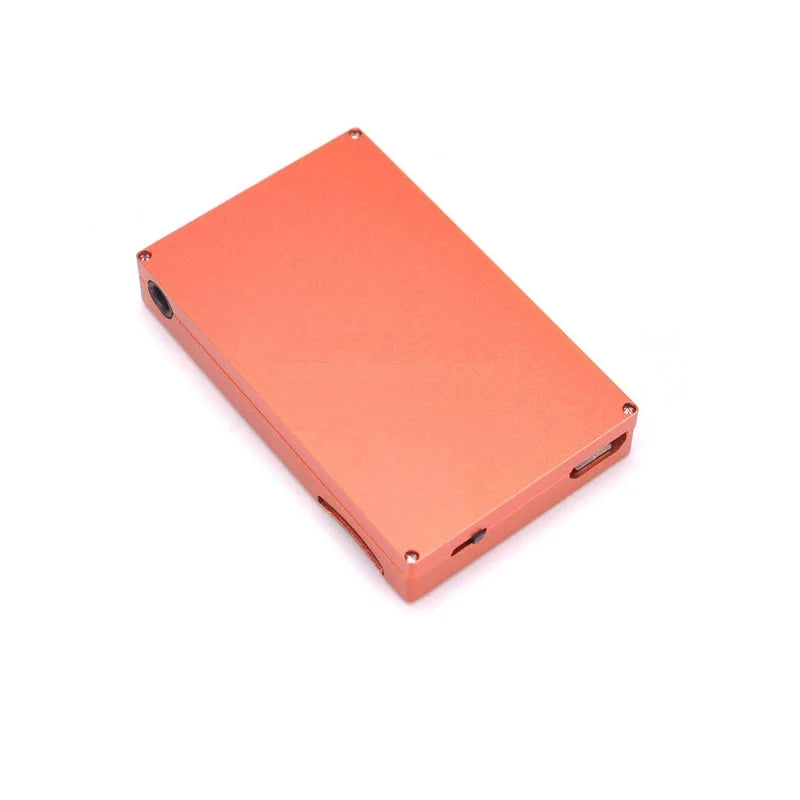

  3. Aluminium alloy casing (CNC processing)
  4. Support 32GB TF card (10 levels recommended)
  5. Built-in 3.7V/400 mAh lithium-ion polymer battery
  6. Universal USB charging interface
  7. High-precision 4-level battery power indicator
  8. Multi-language menu, 11 menu language choices
  9. CVBS signal input (built-in video decoder)
  10. Support playback and AV signal output (built-in video encoder)

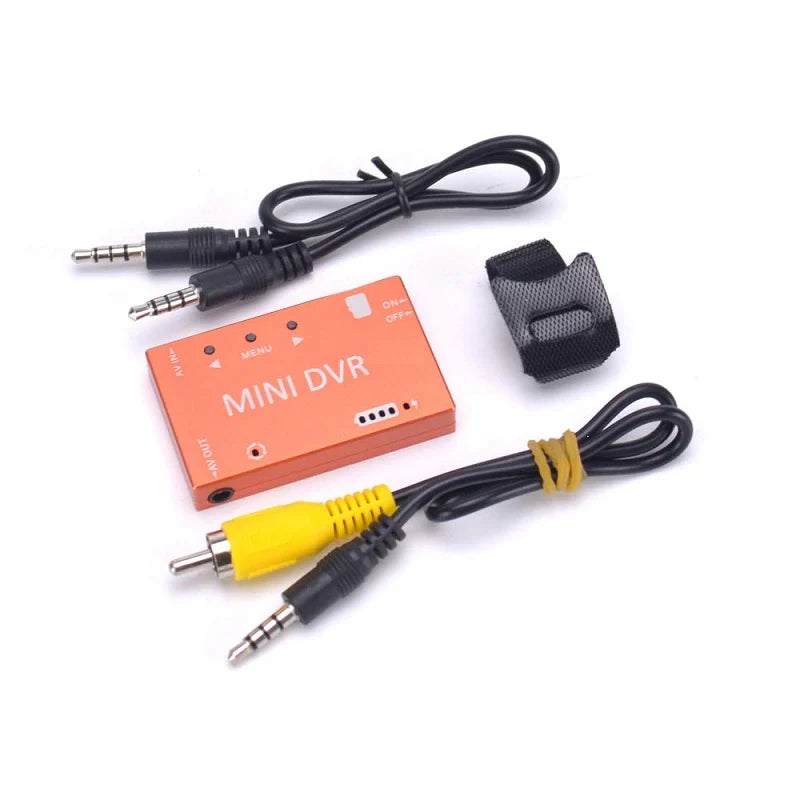

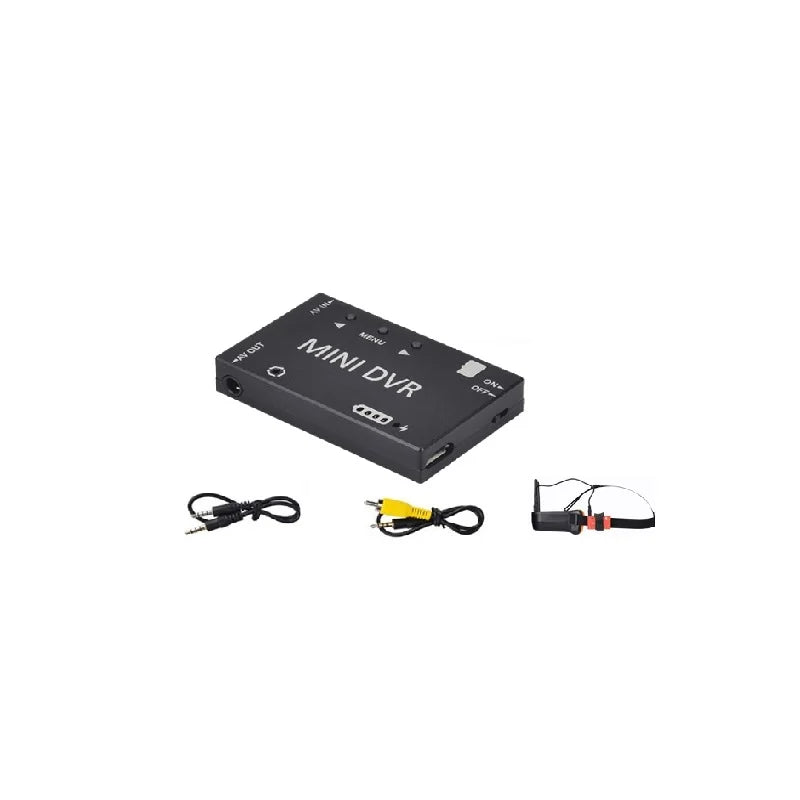

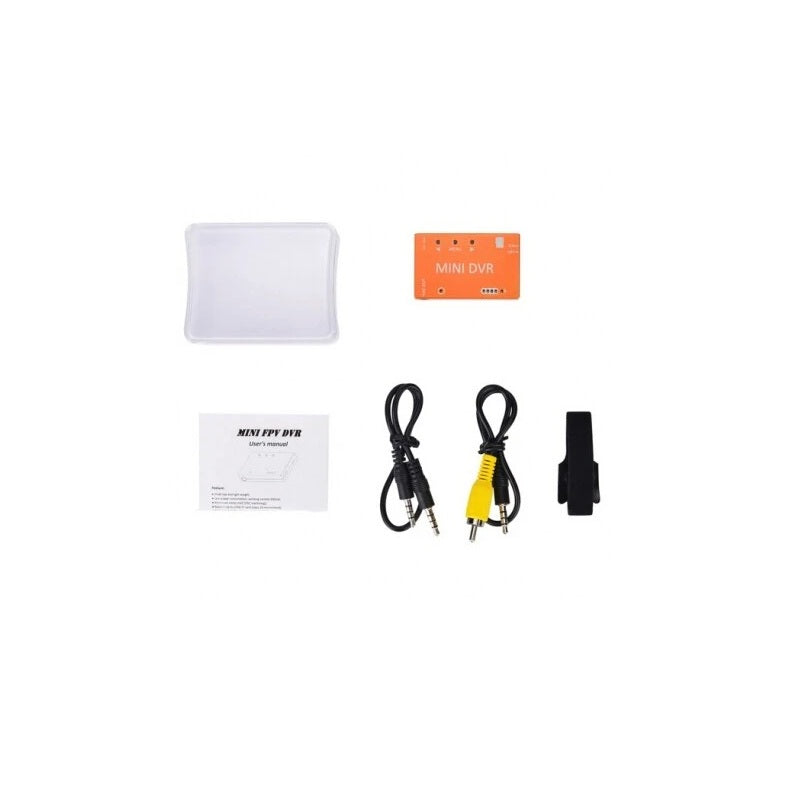

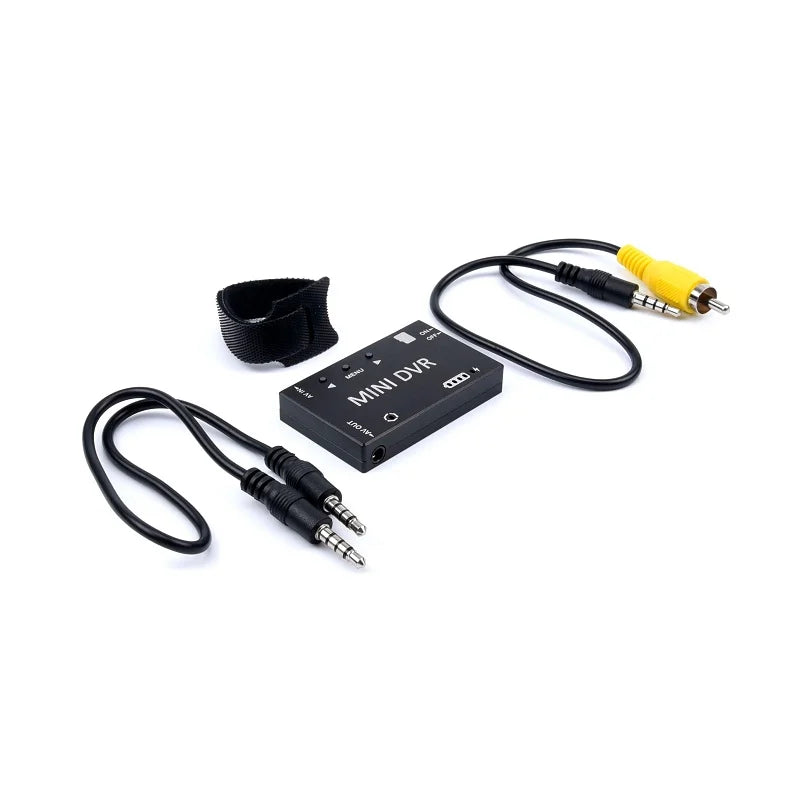

Package Includes:

1 x Mini DVR Audio Video Recorder for FPV RC Drones

1 x 3.5mm to AV Out Cable

1 x 3.5mm to 3.5mm AV-in Cable

1 x Strap to tie DVR box

1 x User Manual

Specification:

Model

FPV Mini DVR

Supports Memory card

TF card, support up to 32GB (C10 recommended)

Video playback:

CVBS output (connected to the monitor)

Optical frequency

50Hz/60Hz can be selected

Audio output interface

3.5mm AV jack

Charging Interface

Micro USB interface

Charging Voltage

5V DC

Menu language

11 language choices

Charging current

500mA Max

Battery (non-removable)

Built-in 3.7V/400 mAh lithium-ion polymer battery
Battery life: Each working load is 1.5 to 2 hours of working time.

Operating temperature

-10~60°C

Operating humidity

85% RH

DVR box Color

Orange

Length (mm)

53

Width (mm)

33

Height (mm)

9

Weight (gm)

24.5

Shipment Weight

0.04 kg

Shipment Dimensions

10 × 5 × 2 cm
