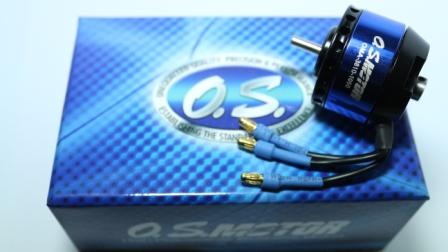

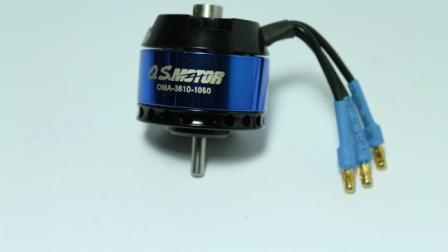

OS BRUSHLESS MOTOR OMA 3810-1050

Rs. 2,970.00
SKU 00064
We currently have 29 in stock.

Specifications:

Connectors

3.5mm (Inc.)

Poles

14

Length

32.8mm

Weight

130g

Turns

16

Resistance

36.5mOhms

Pole

14

Max Current

60A

Bearings

3

Current Range

25 - 60A

Diameter

37mm

ESC Timing Degrees

20 - 30 Degrees

KV RPM

1000

Power Output

300 - 800W

Nominal Voltage

11.1v

No Load Current

1.1A

Max Efficiency

85%

Shaft dia

5mm

Shaft Length

11.7mm

KV:   1050
Weight:   102g
Shaft Diameter:   4.0mm
Lipo:   Max 3-cells

The OS OMA-3810-1050 High Performance Brushless Motor is designed equivalent for 2-stroke 10 size airplanes.

Designed by O.S. engineers to be the new "gold standard" in electric power, these motors offer the same legendary quality and reliability that have made O.S. glow engines famous worldwide for 75 years. Initially, the motors are being produced in six sizes, equivalent to .10, .15, .25, .30, .40 and .50 size glow engines.

Only O.S. brushless motors will offer a ventilation system that increases efficiency and allows the motors to generate additional power. Key to this system is a unique centrifugal fan design. The fan draws air through specially angled ventilation holes, across the windings and over the magnets for greatly improved cooling.

Other performance features of O.S. Brushless Motors include:
  • A thick can design that resists distortion
  • Three high-quality bearings
  • Rigid and secure rear mounting design
  • Shortened motor length for easy installation in short cowls
  • A stainless steel prop shaft
  • Supplied backplate, prop shaft, and gold-plated female plugs

With the introduction of these brushless motors, O.S. reaffirms its standing as R/C's most innovative and respected resource for all model power needs. O.S. plans to expand its motor lineup in the near future with more sizes and choices for car, helicopter and ducted fan modelers.
