Phoenix Model Piper J3 Cub GP/EP 20cc Gas/EP ARF 90" - 1:4 3/4

by HHCD
Out of Stock
Rs. 35,248.80
SKU HHCD0686
We currently have 0 in stock.

Description

Coast with a classic.

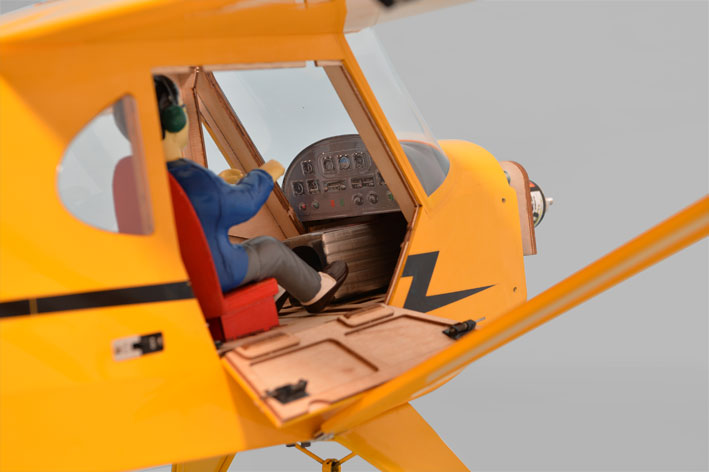

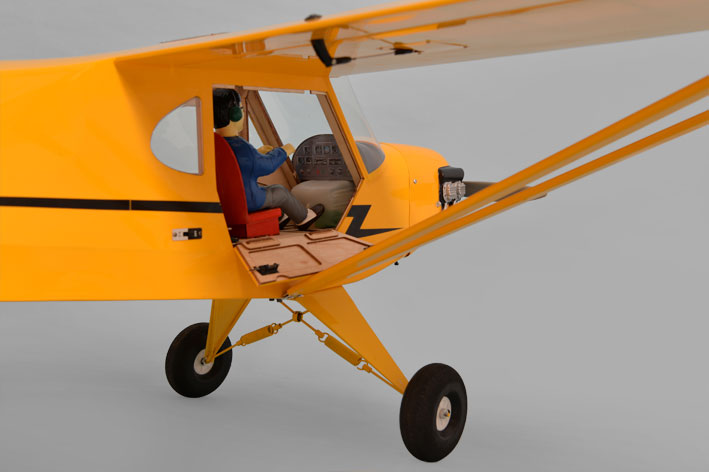

The 90.5" span Piper J-3 Cub GP/EP/Gas ARF combines classic looks with modern versatility! It arrives packed with superior scale details, including a realistic cockpit, instrument panel and pilot figure, operational cockpit side doors and functional panel flaps.
This is the Radio Controlled, Electric, Glow or Gasoline Powered
120/20cc 1:4 3/4 Scale Piper J3 Cub from Phoenix Model.
For Intermediate Flyers.

FEATURES

Construction: Laser cut balsa and light plywood with hard points for
mounting scale float kit (not included) built into fuselage,
operational cockpit side-doors
Wing: Two-piece with quick-connect, streamlined wing struts, dual
servo control flaps and ailerons
Covering: High quality heat shrink
Cowl:
Canopy:
Landing Gear:
Wheels:
Engine Mount: Two-piece composite plastic
Motor Mount: Plywood
Fuel Tank:

INCLUDES
Prebuilt and covered, Wing, Fuselage and Tail assemblies, Landing
Gear, Wheels, Cockpit Instrument Panel, Painted Pilot, Hardware
Package

REQUIREMENTS
Electric Power:
Brushless Motor: Rimfire 1.20 recommended
Electronic Speed Control:
Battery: 6S LiPo
Battery Charger, LiPo Charging Bag

Glow Power:
Engine: 1.20 two-stroke
Glow Fuel, Glow Starter, Electric Starter

Gasoline Power:
Engine: 20cc two-stroke

Radio: At least 8-channel
Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1
throttle (if using glow or gasoline engine)
Receiver Battery: 6.0V, at least 2400mAh NiMH
Spinner:
Propeller: Compatible with selected brushless motor, or glow/gasoline
engine
Building and field equipment

SPECIFICATIONS

  • Wingspan: 90.5" (2300mm)
  • Length: 60.6" (1541mm)
  • Flying Weight: 13.2 - 14.3lbs (6000 - 6500g)
  • Wing Area: 1219 sq in (78.6 sq dm)
  • Wing Loading: 25.0oz/sq in (76.3g/sq dm)
  • Wing Type: NACA airfoils
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
