Phoenix Model Tiger Moth .46-.55 GP/EP ARF 55.3"
A fun find for nostalgic fliers!
Sport flying doesn't get more spectacular or scale-like â€“ than the 55.3" span Tiger Moth GP/EP ARF from Phoenix Model! Features include a high-quality, factory-covered trim scheme, a true-to-scale outline, a fiberglass cowl, detailed instrument panels, scale wire rigging and complete hardware.
This is the Radio Controlled, Glow or Electric Powered,
Almost Ready to Fly Tiger Moth Biplane from Phoenix Model.
For intermediate pilots.
Construction: Balsa and ply
Wings: Two-piece with aluminum wing tubes, and semi-symmetrical
Aileron Control: Dual servo
Covering: High quality heat shrink covering
Landing Gear: Main, 2.5" (63mm) foam wheels, 1" (25.4mm) tailwheel
Fuel Tank: 14oz (420cc) approximate
Engine Mount: Two-piece composite
Motor Mount: Plywood

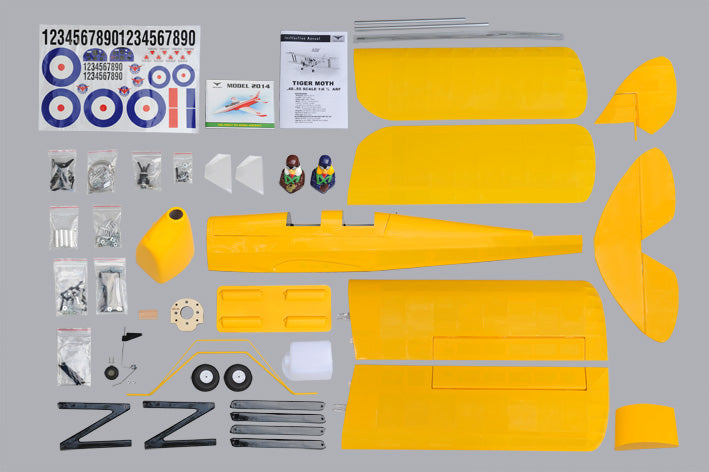

ARF Tiger Moth Biplane with Landing Gear, Wheels, Wheel Pants
Cowl, Painted Pilot and Co-Pilot, and Instruction Manual
Radio: 4-channel minimum
Servo: 5 standard,: 2-aileron; 1-elevator; 1-rudder; 1-throttle (if
using glow engine)
Receiver Battery: 4.8-6V / 800-1200mAh NiMH
For electric power;
Brushless Motor: Rimfire .46-.55
LiPo Battery: 6S, at least 4000mAh
Battery Charger: Compatible with selected battery
LiPo charging bag, propeller, field equipment

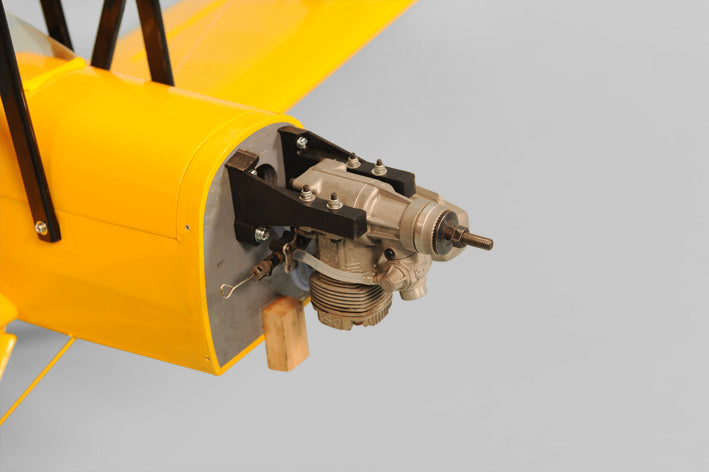

Engine: .46-.55 cu in 2-stroke, OR .52 cu in 4-stroke
Propeller: For selected engine
Glow fuel, glow starter, field equipment
- Wingspan: 55.3" (1404mm)
- Length: 44.6" (1134mm)
- Flying Weight: 7.05 - 7.5lbs (3.2 - 3.4 kg)
- Wing Area: (58sq dm)
- Wing Type: Semi-symmetrical Clark-Y airfoil
- Center of Gravity: 3.5" (90mm) back from the leading
- edge of the upper wing measured at the fuselage
- Control Throws- Low High
- Ailerons: 0.39" (10mm) 10% expo 0.47" (12mm) 10% expo
- Elevator: 0.31" (8mm) 12% expo 0.39" (10mm) 12% expo
- Rudder: 0.98" (25mm) 15% expo 1.57" (40mm) 15% expo
- Wing Bolts: 4.5x30mm
