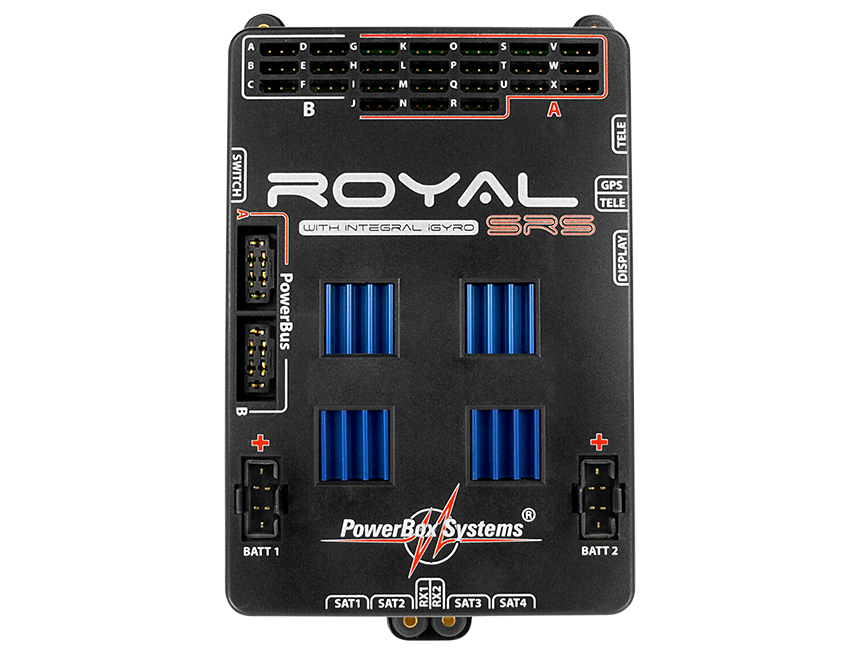

POWER BOX ROYAL SRS

Power Box Royal SRS

Technical Data

• Integral iGyro: triple-axis gyro system with heading function and set-up assistant
• Six independent gyro outputs for: 2x ailerons, 2x elevators, 2x rudders
• GPS-regulated gyro gain
• Special regulatory algorithm for fixed-wing model aircraft
• Extremely accurate triple-axis MEMS sensor
• Integral Delta and V-tail mixer
• Door sequencer: six freely programmable outputs with set-up assistant
• PowerBus: 2 outputs, 16+2 channels, compatible with other servo bus systems
• Servo-Match function: servo centre, end-points and reverse for all 24 servo outputs
• SRS: Serial Receiver System provides the facility to use receivers with serial interface: P²BUS, S-Bus, M-Link, EX-Tele, DSM2/DSMX, X-BUS and HoTT
• Unrestricted channel assignment for all 24 PowerBox outputs
• Graphic LCD screen with 128x64 pixels
• Extremely user-friendly menu-based programming using the SensorSwitch
• Up to 18 channels - depending on the radio control system in use
• Signal amplification and interference suppression for all 24 outputs
• Flight recorder, recording of lost frames, fail-safe events and all battery data
• Variable frame rate, range 9ms - 21ms
• Two 16-bit processors for fast, high-resolution signal processing
• 2 x double-regulated output voltages for receivers and servos
• 2 regulated voltage ranges with independent selection facility, 5.9V or 7.4V
• Connection facilities for P²BUS, S-Bus, M-Link, EX-Tele, DSM2/DSMX, X-BUS and HoTT downlink bus systems
• Direct transmission of all battery informations, receiver data and GPS data to the transmitter
• Separate voltage and capacity display for each battery
• Minimum value memory alerts the user to voltage collapses
• Large-area heat-sinks for high regulator performance
• Regulator monitoring, regulator error indicator
• Support for four battery types: LiPo/LiIon, NiMH / NiCd, LiFePo
• Suppression of any servo feedback currents which may occur
• Updateable with PowerBox Systems USB Interface connectors

Set contents

• PowerBox Royal SRS
• LCD screen
• SensorSwitch
• 2 three-core patch-leads, 180 mm
• 4 retaining screws
• 4 rubber grommets / brass spacer sleeves, fitted
• Operating instructions in German and English

• Optional: GPS Sensor (Order-No.: 4710)
