RADIO MASTER TX16S 16CH OPEN TRANSMITTER MASTERFIRE COMBO

Out of Stock
Rs. 49,678.00
SKU 02926
We currently have 0 in stock.

TX16S 16ch Open TX Transmitter Crossfire Combo

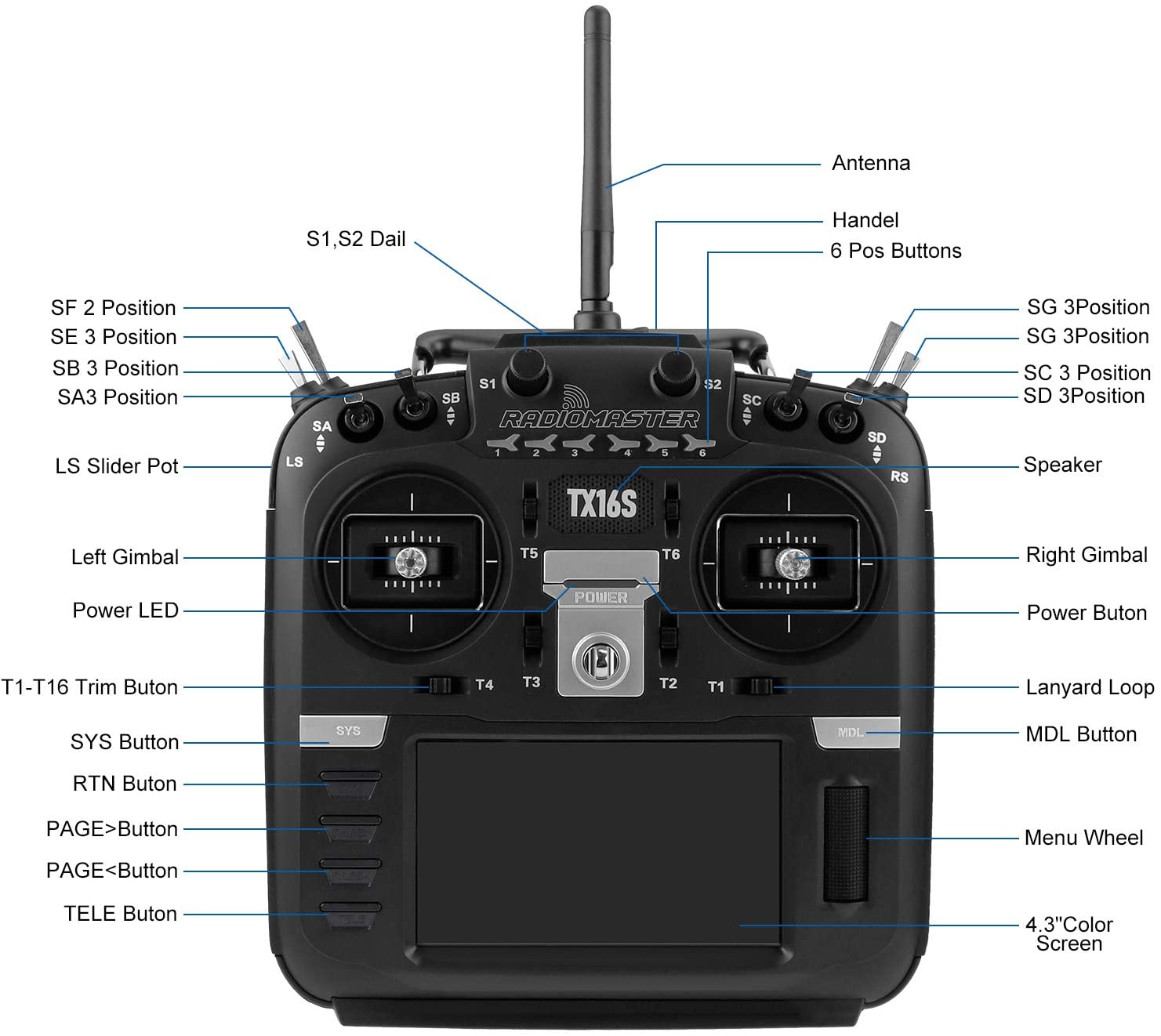

FEATURES

  • Comes with TBS Crossfire MicroTX V2

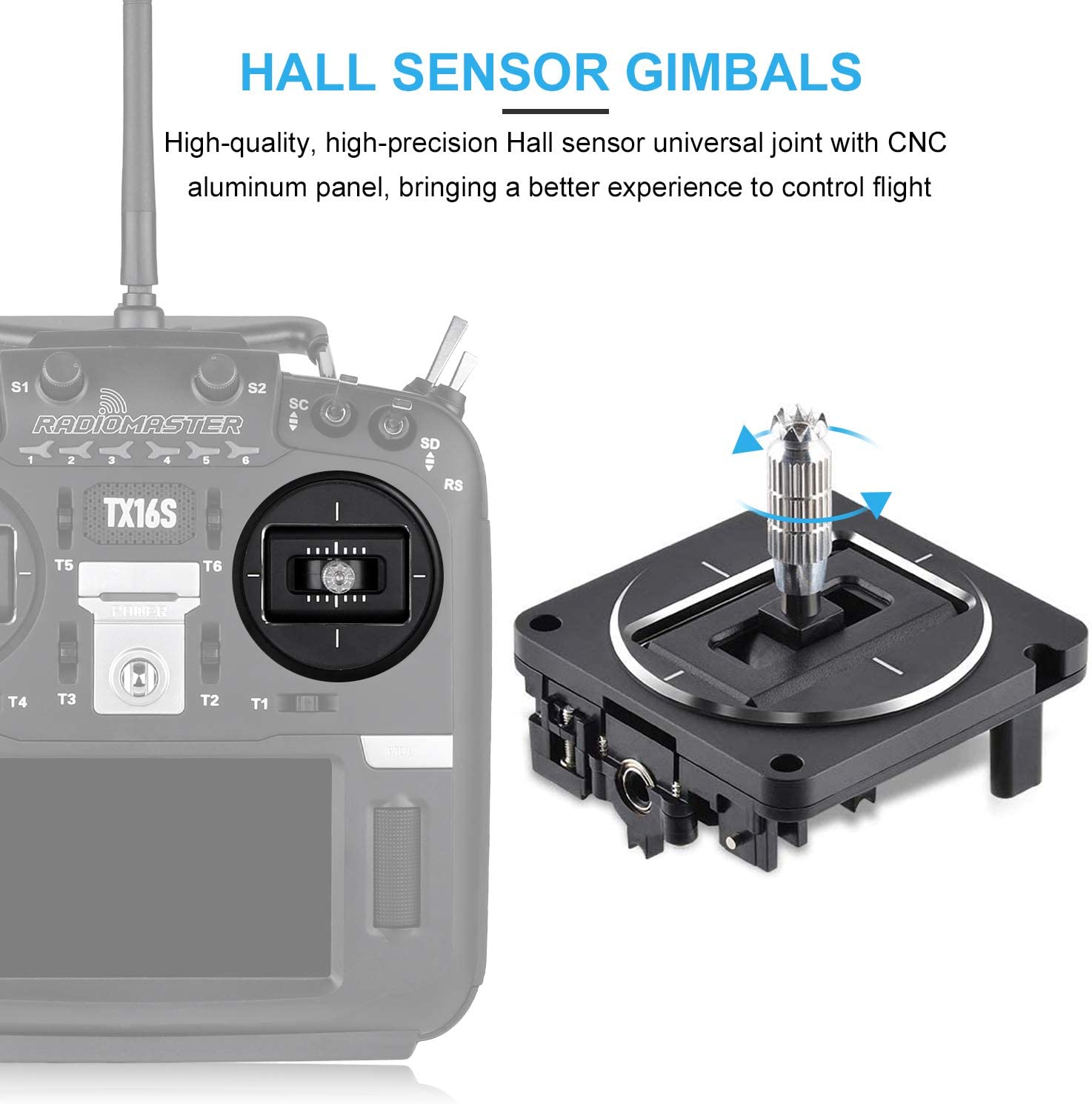

  • Hall Sensor gimbals
  • CNC Aluminum panel

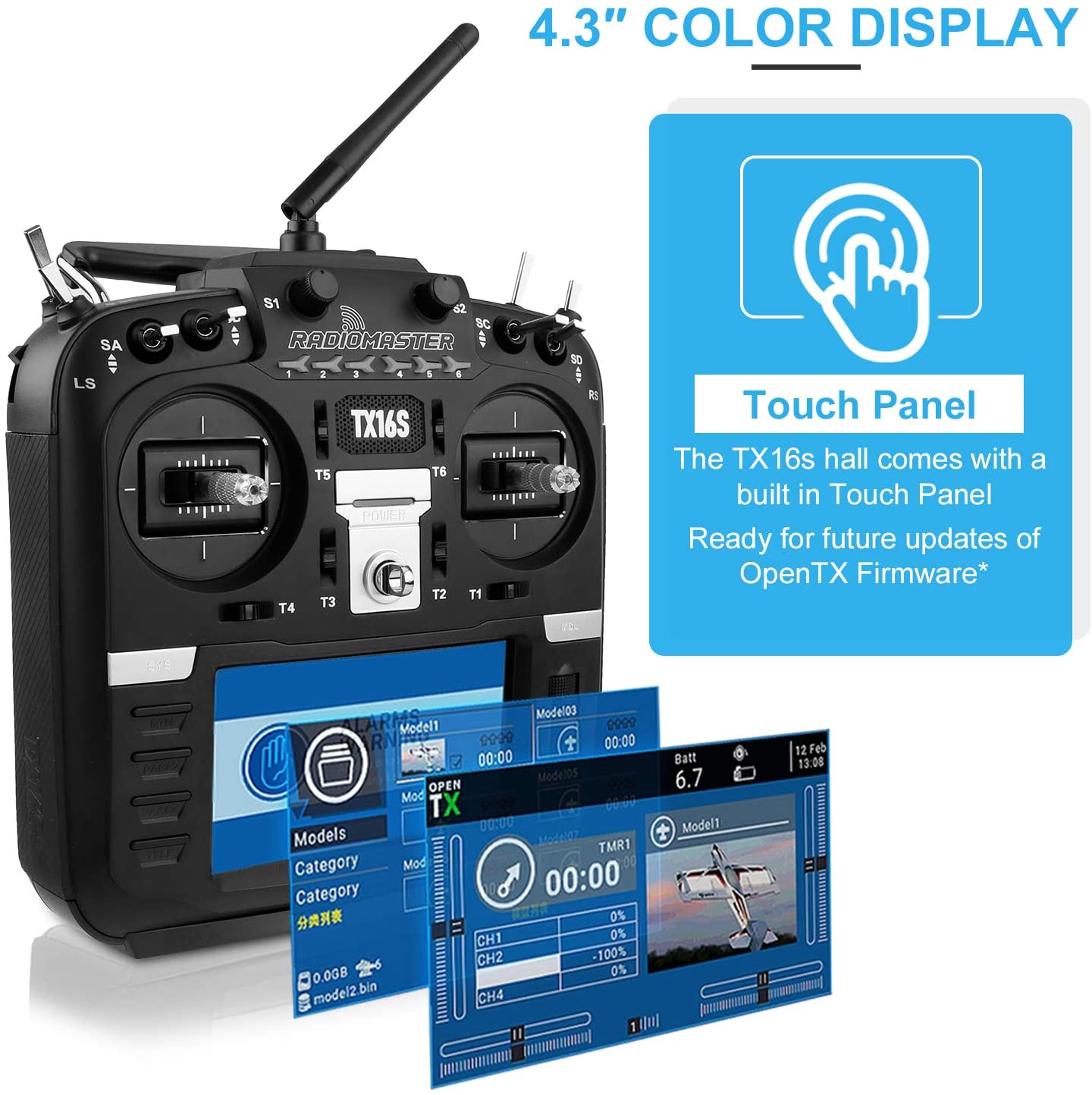

  • 4.3" color touch panel
  • CNC Metal roller
  • Features:
  • STM32F429BIT6 MCU
  • Industrial grade 4.3 inch 480*272 outdoor readable color touch panel screen
  • Compatible with OpenTX
  • Wheel menu button
  • Full Size High Quality HALL sensor gimbals with CNC Aluminum Facias
  • Internal Multi-protocol RF System
  • Full Speed Native TBS Crossfire support (400K)
  • Supports Telemetry (Protocol and Receiver dependent)
  • Memory 16M (can be expanded by Micro SD card)
  • Voice function
  • Vibration reminder function
  • Improved JR module slot
  • 6-Flight Mode Buttons (Pixhawk and more!)
  • Three-color LED status display

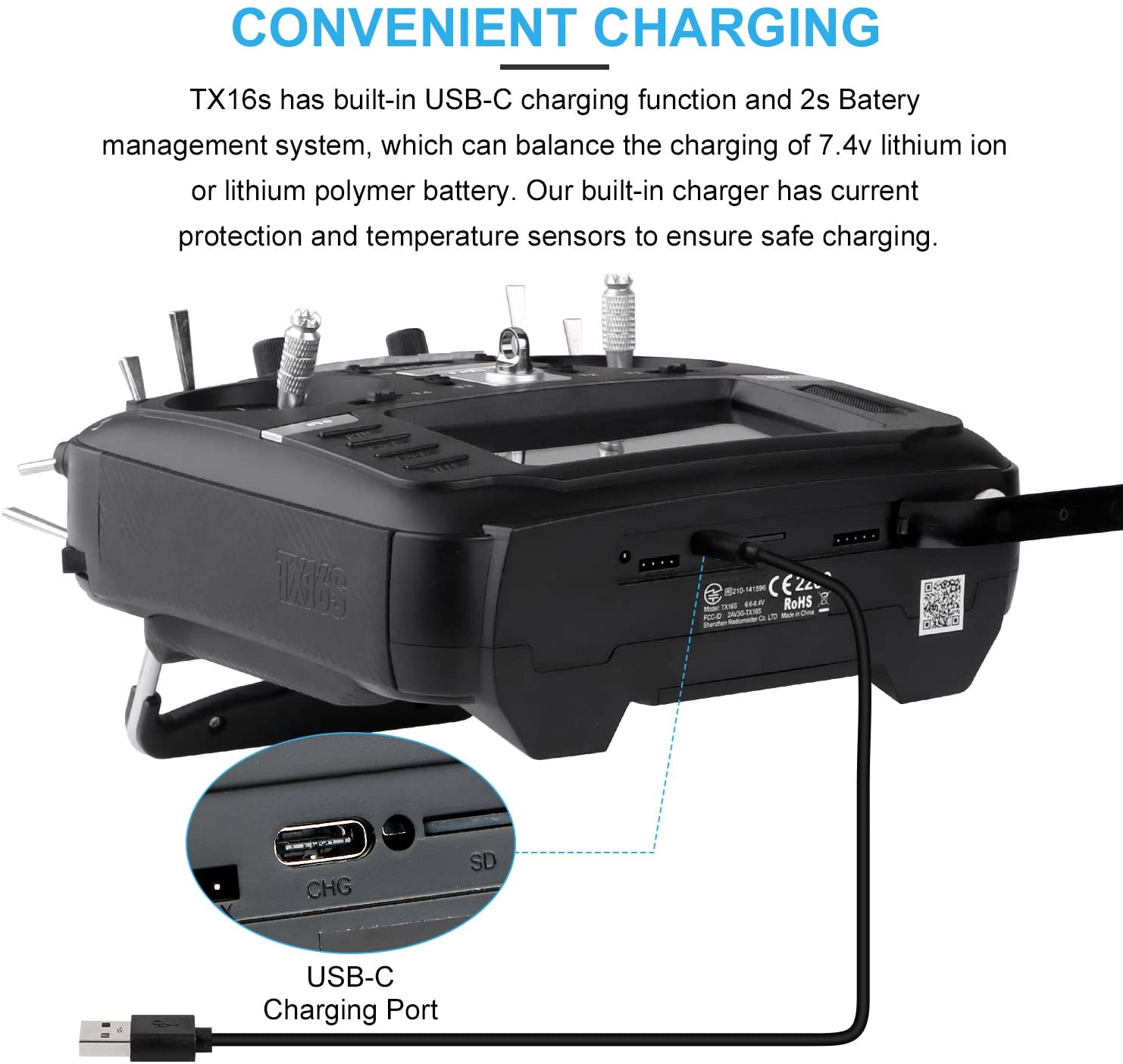

  • USB-C Charging port.
  • USB-C Simulator and PC connection port
  • External UART ports to expand the capabilities of your radio.
  • Internal Multi-protocol RF System
  • Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
  • Texas Instruments CC2500: FrSky, Futabas SFHSS
  • Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
  • Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
  • RF Chip Data
  • The TX16S internal RF system features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module most of today’s prominent RF protocols (See RF Chip data below). The RadioMaster internal RF module will support firmware updates directly from the radios Operating system. No complicated update procedures.

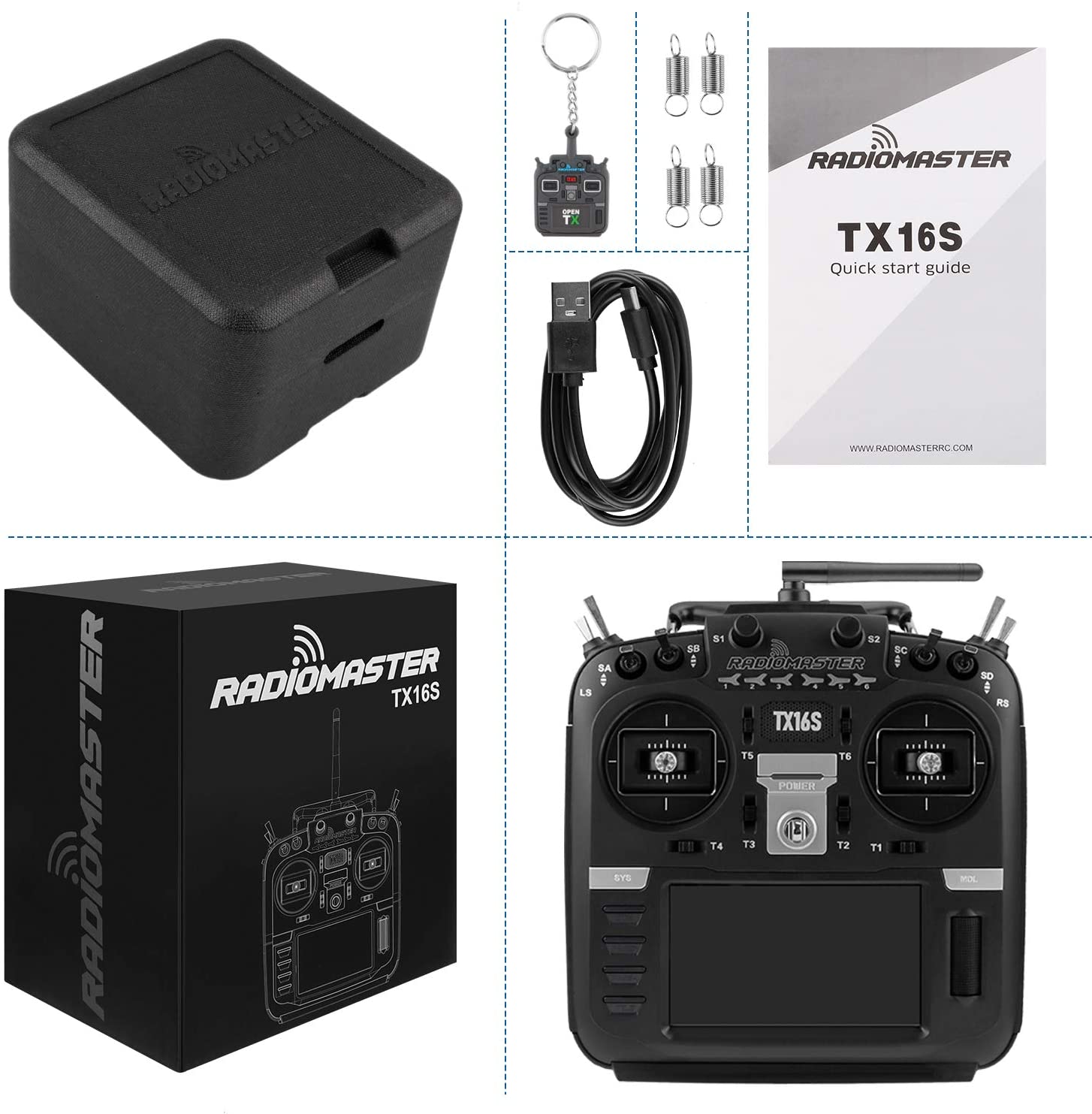

  • Package included:
    1 x TX16S Transmitter with TBS Micro TX V2 and Receiver Combo Set
  • 1 x USB-C Cable
    1 x 18650 Tray
  • Description: (User Manual)
  • Brand Name: RadioMaster
    Item Name: TX16S Transmitter
  • Channel: 16CH
    Mode: Mode2/Mode1
  • Size: 183*212*66 mm
  • Weight: 736g (without battery)
  • Voltage: DC7-8.4V
  • Battery Compartment: 25*52*97mm
  • Battery: 2 x18650 (tray included) , 21700 7.4v 2s Pack or 7.4v 2s Lipoly (Batteries not included)
  • Current: 400mah (excluding external module)
  • External Micro SD slot: Card Included
