TBS SOURCE ONE 5INCH FRAME V3

Out of Stock
Rs. 5,971.00
SKU 03131
We currently have 0 in stock.

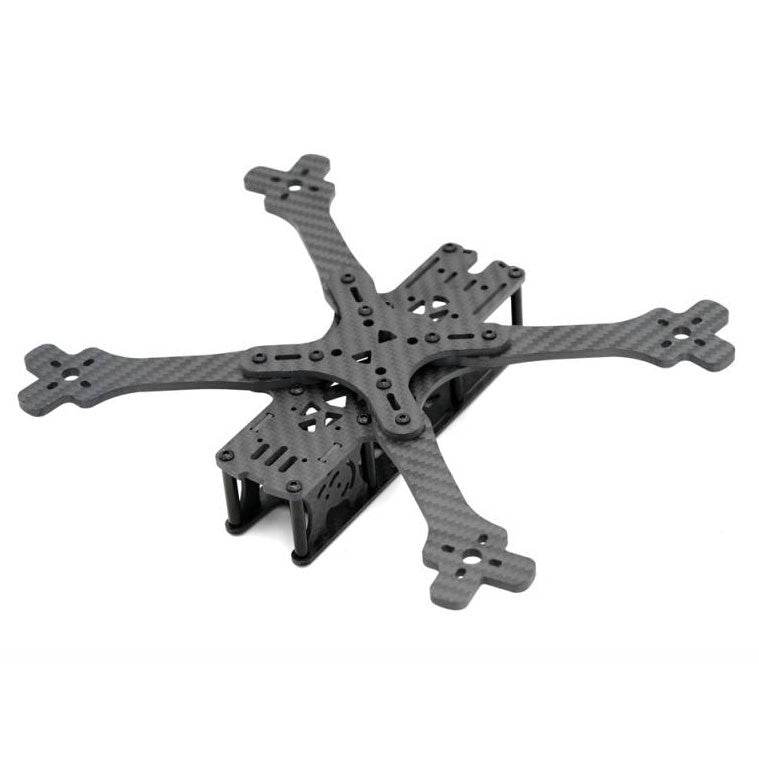

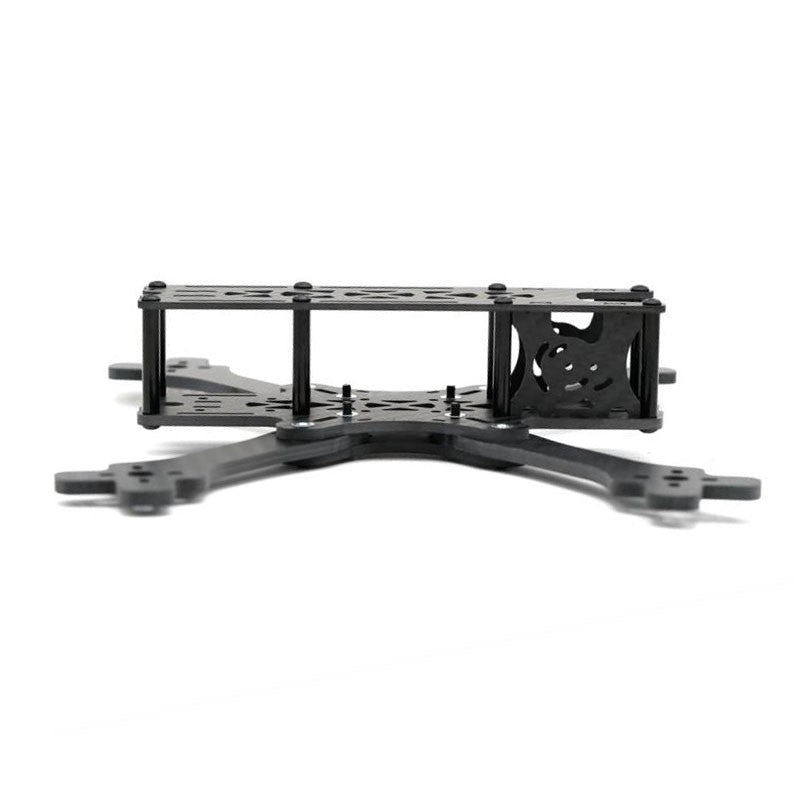

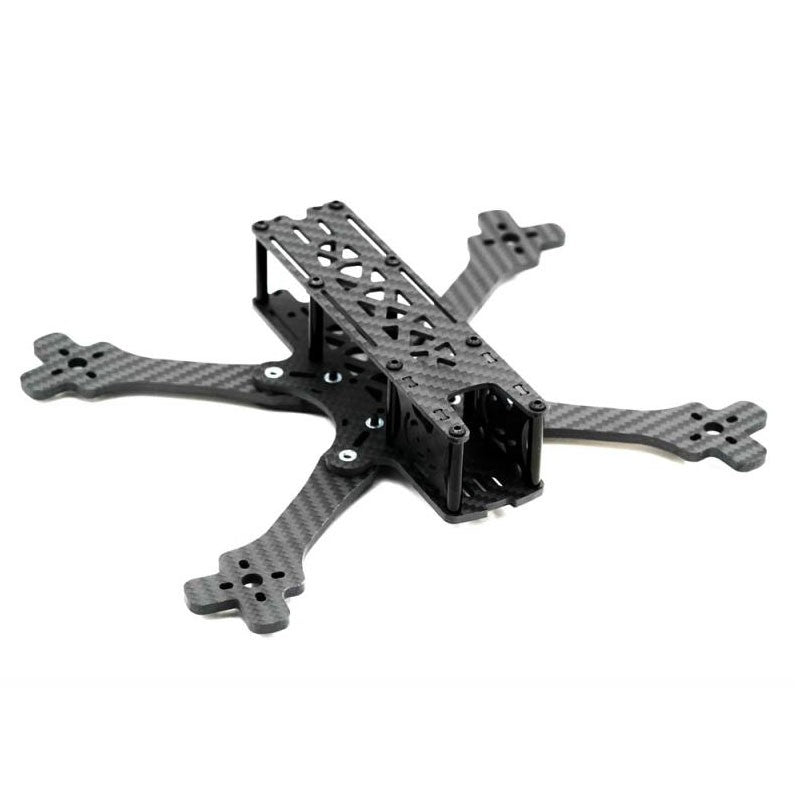

TBS Source One 5" Frame V3

SPECIFICATIONS:

  • Wheelbase 5": 226mm
  • Wheelbase 6": 263mm (not sold)
  • Wheelbase 7": 300mm
  • Top Plate: 2mm
  • Bottom Plate: 3mm
  • Standoff height: 30mm
  • Arm thickness 5": 4mm
  • Arm thickness 6": 4mm (not sold)
  • Arm thickness 7": 6mm
  • Stack Mounting: 30.5 × 30.5mm & 20 x 20
  • Weight 5": 145.1g

INCLUDES

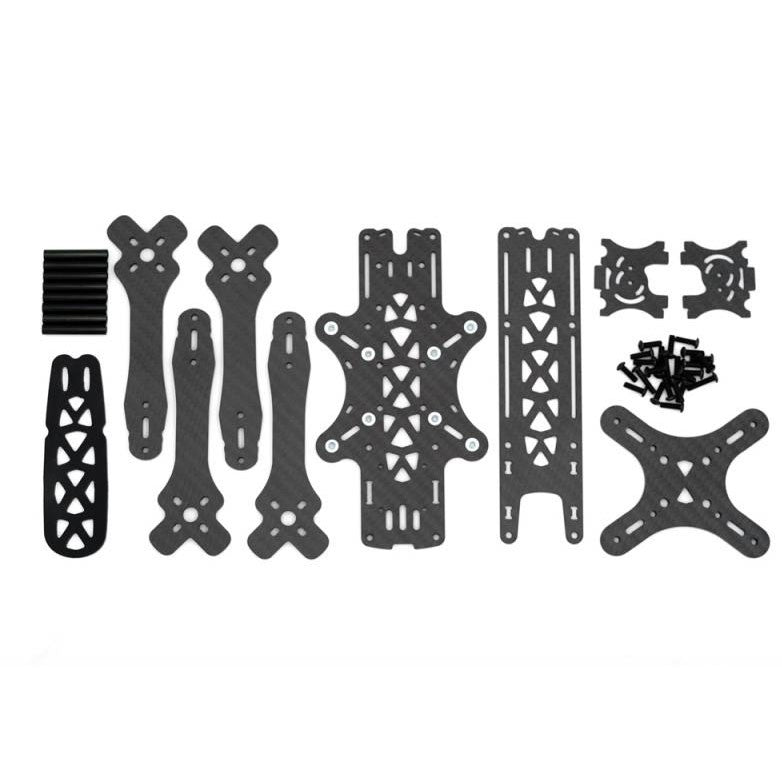

  • 1x Frame (Top, Bottom. Brace and 2x Camera plate, 4x Arms)
  • 1x Screw & Standoff set

HARDWARE

  • 20x M3x10 Allen screw
  • 4x M3x14 Allen screw
  • 8X OD 5mm M3 30mm standoff
  • 8x M3 press insert nut
