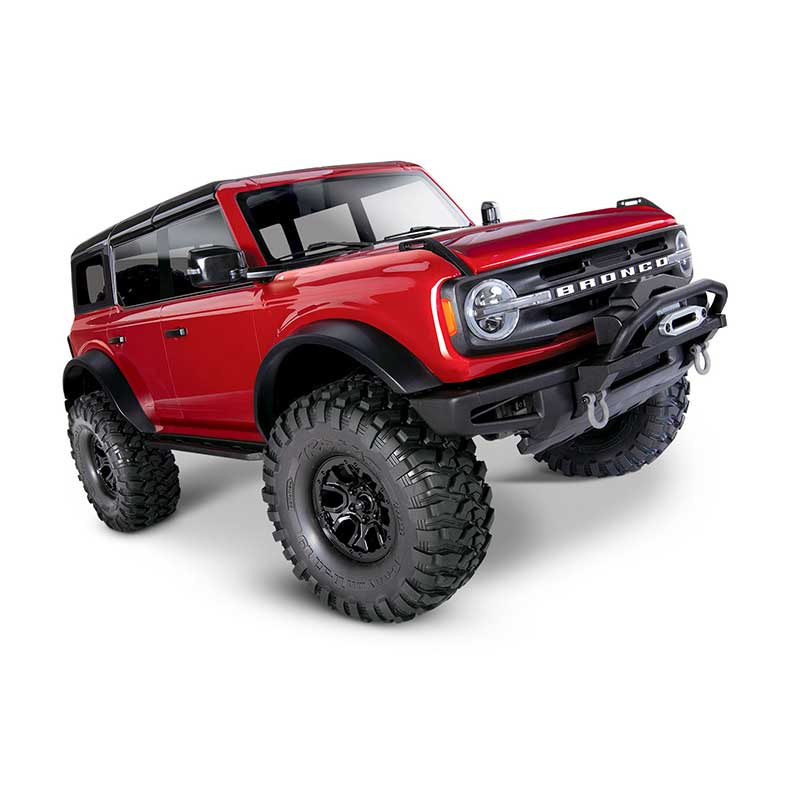

TRAXXAS BRONCO TRX4 RED SCALE AND TRAIL CRAWLER 4WD 1/10SCALE

Out of Stock
Rs. 109,150.00
SKU 03545
We currently have 0 in stock.

TRAXXAS BRONCO TRX4 RED SCALE AND TRAIL CRAWLER 4WD 1/10SCALE

Vehicle Specs:

  • Length (overall): 22.98 inches (584mm)
  • Length (chassis): 21.59 inches (549mm)
  • Front Track: 9.78 inches (249mm)
  • Rear Track: 9.78 inches (249mm)
  • Ground Clearance: 3.14 inches (80mm)
  • Weight: 6.42lb (2.91kg)
  • Height: 9.4 inches (239mm)
  • Wheelbase: 12.8 inches (324mm)
  • Front Shock Length: 3.54 inches (90mm)
  • Rear Shock Length: 3.54 inches (90mm)
  • Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
  • Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)

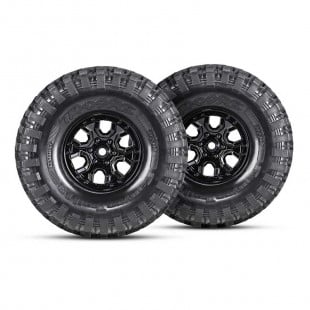

  • Front Tires: 4.64 x 1.89 inches (118 x 48mm)
  • Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
  • Approach Angle: 52°
  • Departure Angle: 49°
  • Breakover Angle: 58°
  • Hex Size: 12mm
  • Speed Control: XL-5 HV
  • Motor (electric): 21T Reverse Rotation
  • Transmission: 2-speed Hi-Lo, Remote Shifting
  • Gear Pitch: 32P
  • Differential Type: 4 Gear, Remote Locking
  • Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
  • Brake Type: Electronic “Hill Hold”
  • Drive System: Shaft Driven 4WD
  • Steering: Chassis Mounted Servo

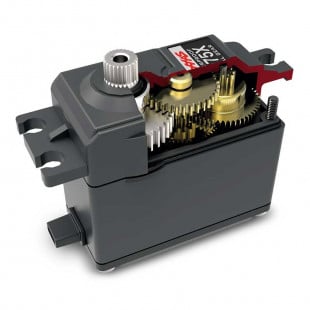

  • Servo: 2075X Metal Gear
  • Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
  • Receiver: 6533
  • Skill Level: 1
  • Battery Tray: 158.75 L x 47 W x 23/26mm H



Motor Specs:

  • Type: High-torque brushed motor
  • Size: 550
  • Weight: 390g (13.76oz)
  • Length:            3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
  • Turns: 21T reverse rotation
  • Voltage: 16.8V



ESC Spec:

  • Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
  • Case Size: 1.23” W x 2.18” D x 1.04” H
  • Weight:            2.6oz (74g)
  • Motor Limit: 21-turns (550 size)
  • On Resistance Forward: 0.004 Ohms
  • On Resistance Reverse: 0.004 Ohms
  • Peak Current - Forward: 100A
  • Peak Current - Reverse: 100A
  • Braking Current: 60A
  • Continuous Current: 18A
  • BEC Voltage: 6.0 VDC
  • BEC Current: 1A
  • Power Wire: 14 Gauge / 5”
  • Input Harness Wire: 26 Gauge / 14.5”
  • Transistor Type: MOSFET
  • PWM Frequency: 1700Hz
  • Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
  • Thermal Protection: Thermal Shutdown
  • Profile selection:
  • Sport Mode: 100% FWD, 100% brakes, 100% REV
  • Race Mode: 100% FWD, 100% brakes, no REV
  • Training Mode:* 50% FWD, 100% brakes, 50% REV
  • Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
  • Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
  • Single-button setup:    Yes, Traxxas EZ-Set®

Include:

  • Traxxas TRX-4 2021 Ford Bronco Red Version, Ready-To-Race® model
  • XL-5 HV waterproof electronic speed control
  • Titan™ 21T reverse rotation motor
  • TQi™ 2.4GHz radio system with cruise control
  • High quality maintenance tools

Require:

  • Batteries
  • Charger
  • AA Batteries (4 pcs)
