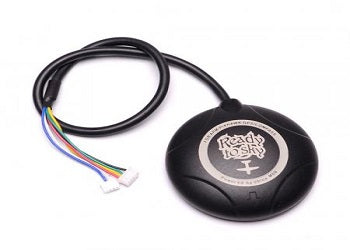

Ublox NEO-M8N GPS with Compass for Pixhawk with extra connector for APM
-

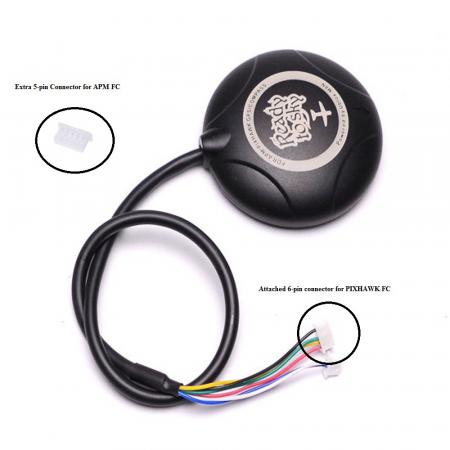

Ready to Connect to PIXHAWK FC with 6-pin connector Attached
-
Receiver type 72-channel Ublox M8 engine
-
Galileo-ready E1B/C (NEO-M8N)
-
Nav. update rate1 Single GNSS: up to 18 HZ
-
Acquisition Cold starts: 26 s
-
Onboard Compass
Features:
-
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
-
SBAS L1 C/A: WAAS, EGNOS, MSAS
-
Galileo-ready E1B/C (NEO-M8N)
-
Onboard Compass
-
Assistance AssistNow GNSS Online
-
AssistNow GNSS Offline (up to 35 days)
-
AssistNow Autonomous (up to 6 days)
-
OMA SUPL & 3GPP compliant
-
Oscillator TCXO (NEO-M8N/Q),
-
Crystal (NEO-M8M)
-
RTC crystal Built-In
-
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
-
lowest noise figure (NEO-M8N/Q)
-
Anti-jamming Active CW detection and removal. Extra
-
onboard SAW bandpass filter (NEO-M8N/Q)
-
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
-
Supported antennas Active and passive
-
Odometer Travelled distance
-
Data-logger For position, velocity, and time (NEO-M8N)
Package Includes:
1 x Ublox NEO M8N GPS for Pixhawk and APM flight controller
1 x Extra 5-pin Connector for APM FC
